Towel Rack

USD1000156No. D 1,000,156designGranted 10/3/2023
Patent USD1000156 — Towel rack — Figure 1
Fig. 1 · Towel Rack

Claims (1)

Claim 1 (Independent)

The ornamental design for a towel rack, as shown and described.

Full Description

Show full text →

is a perspective view of a first embodiment of a towel rack design showing my new design.

is a front view thereof.

is a rear view thereof.

is a left side view thereof.

is a right side view thereof.

is a top view thereof; and,

is a bottom view thereof.

Figures (7)

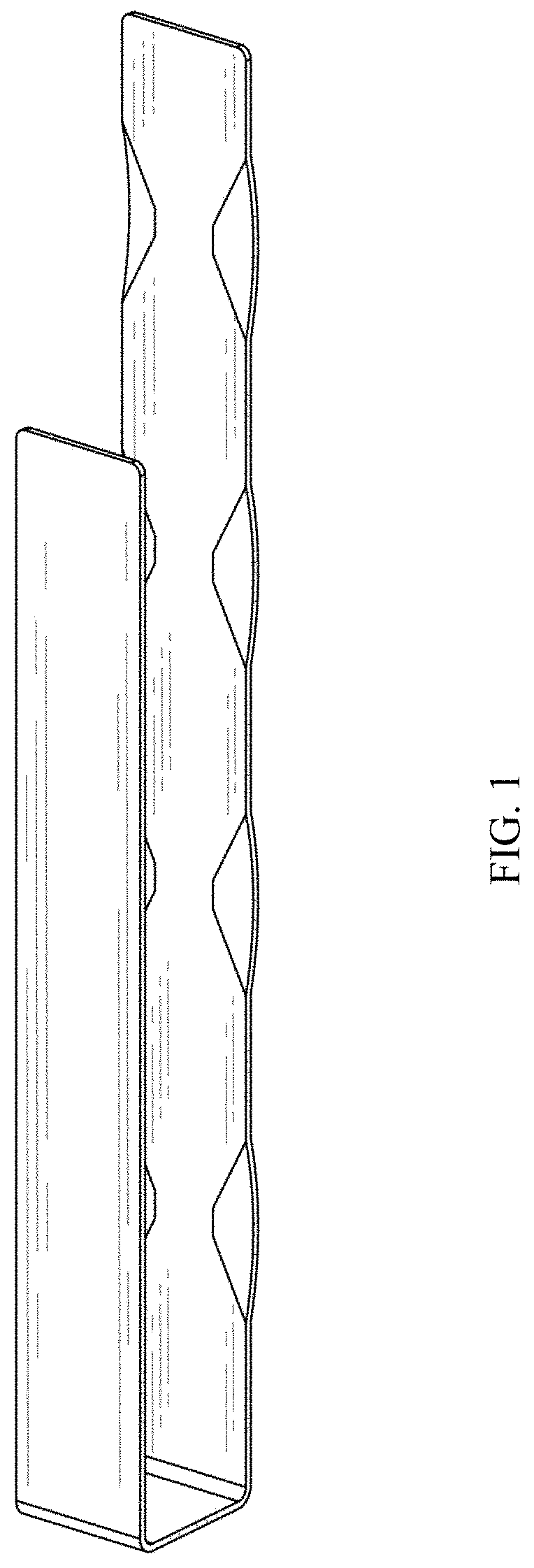

Fig. 1

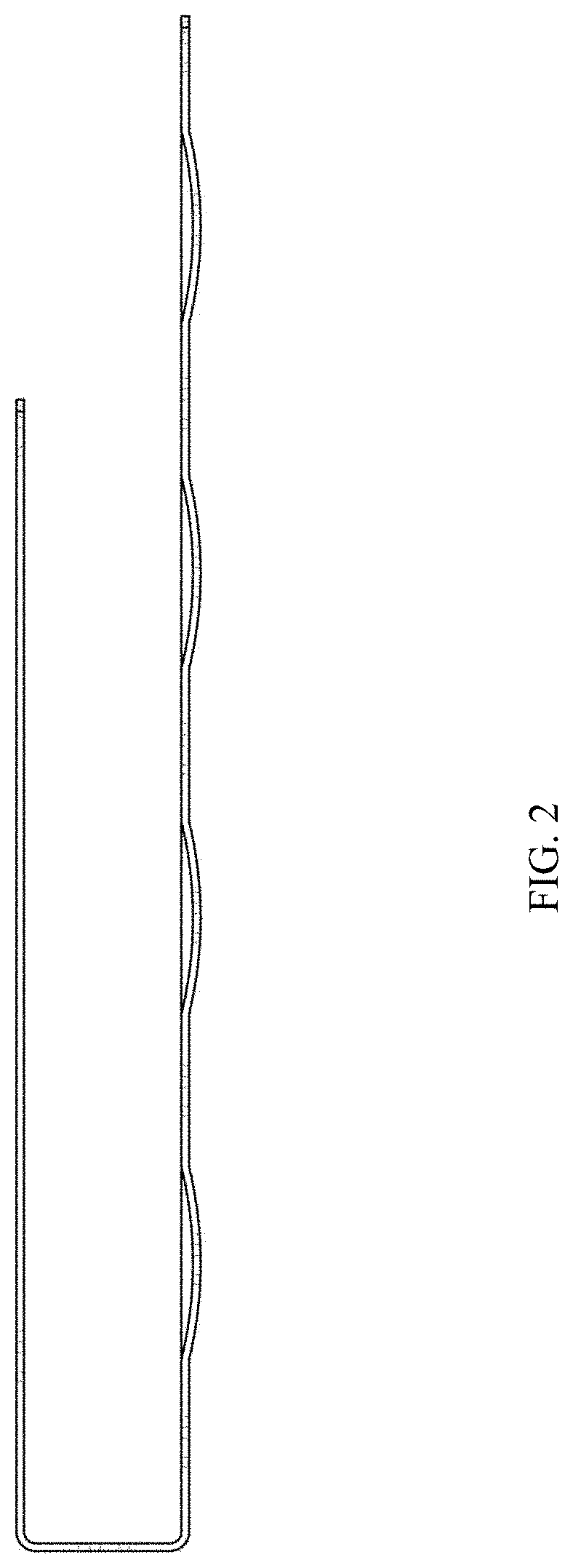

Fig. 2

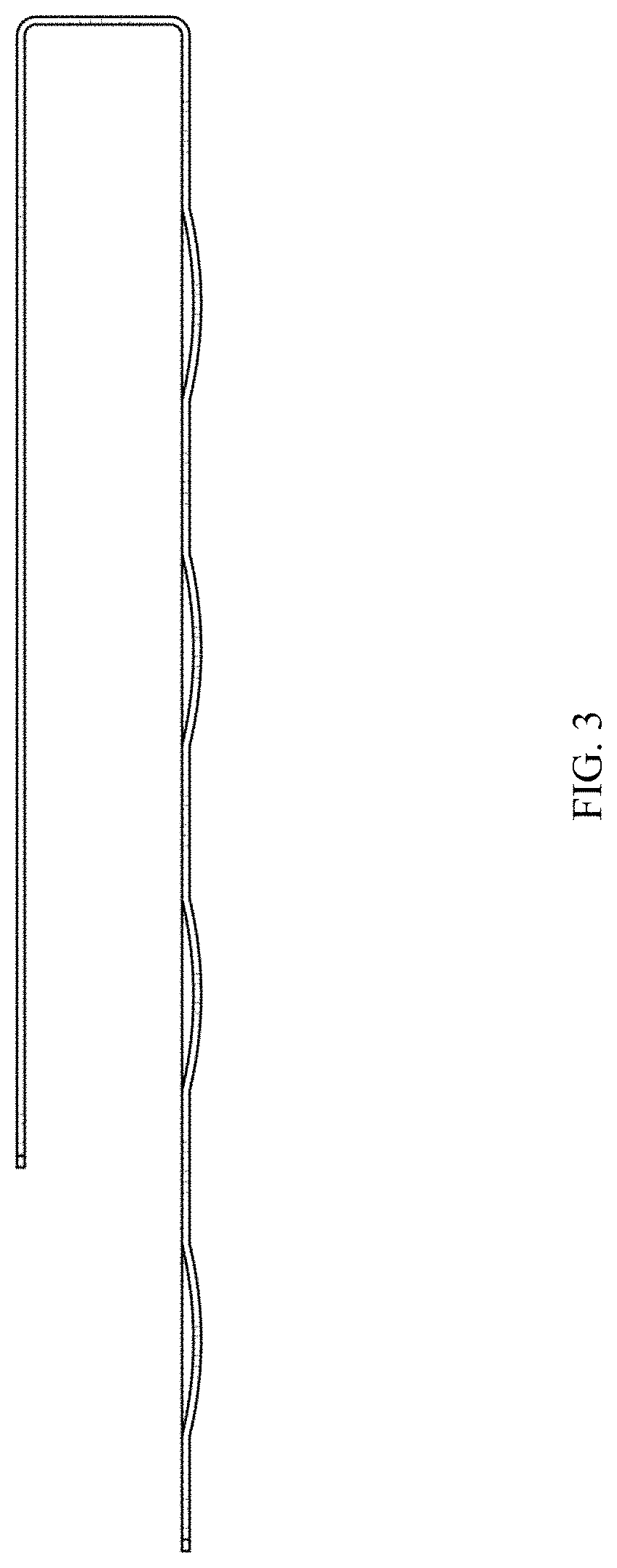

Fig. 3
Fig. 4
Fig. 5
Fig. 6

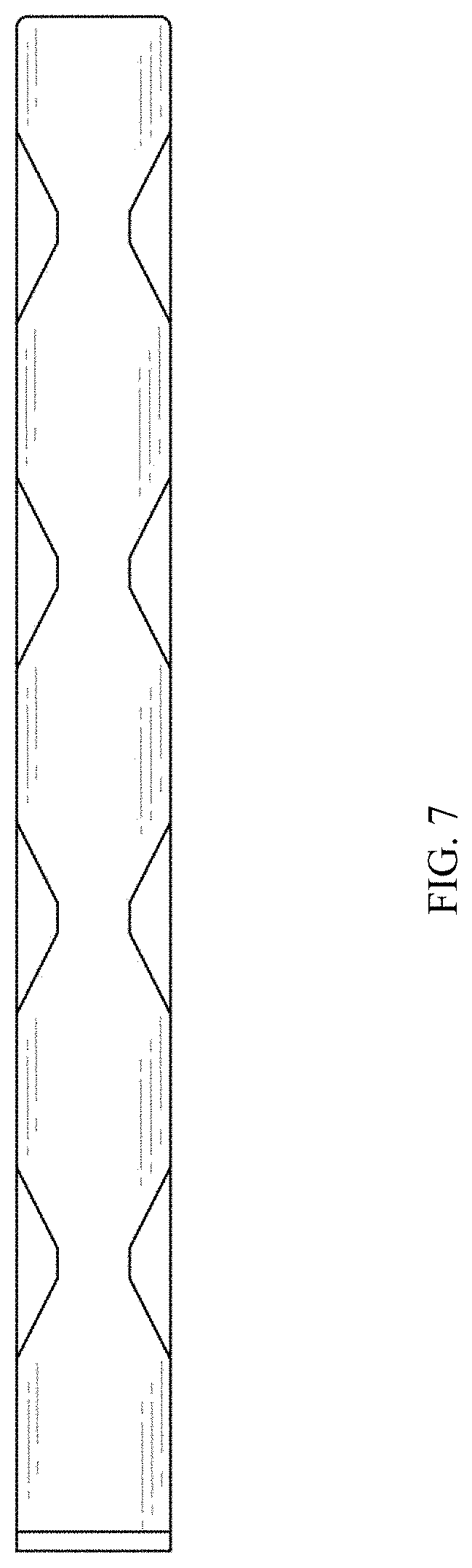

Fig. 7
