Patents/USD1000143

Chair

USD1000143No. D 1,000,143designGranted 10/3/2023
Patent USD1000143 — Chair — Figure 1
Fig. 1 · Chair

Claims (1)

Claim 1 (Independent)

The ornamental design for a chair, as shown and described.

Full Description

Show full text →

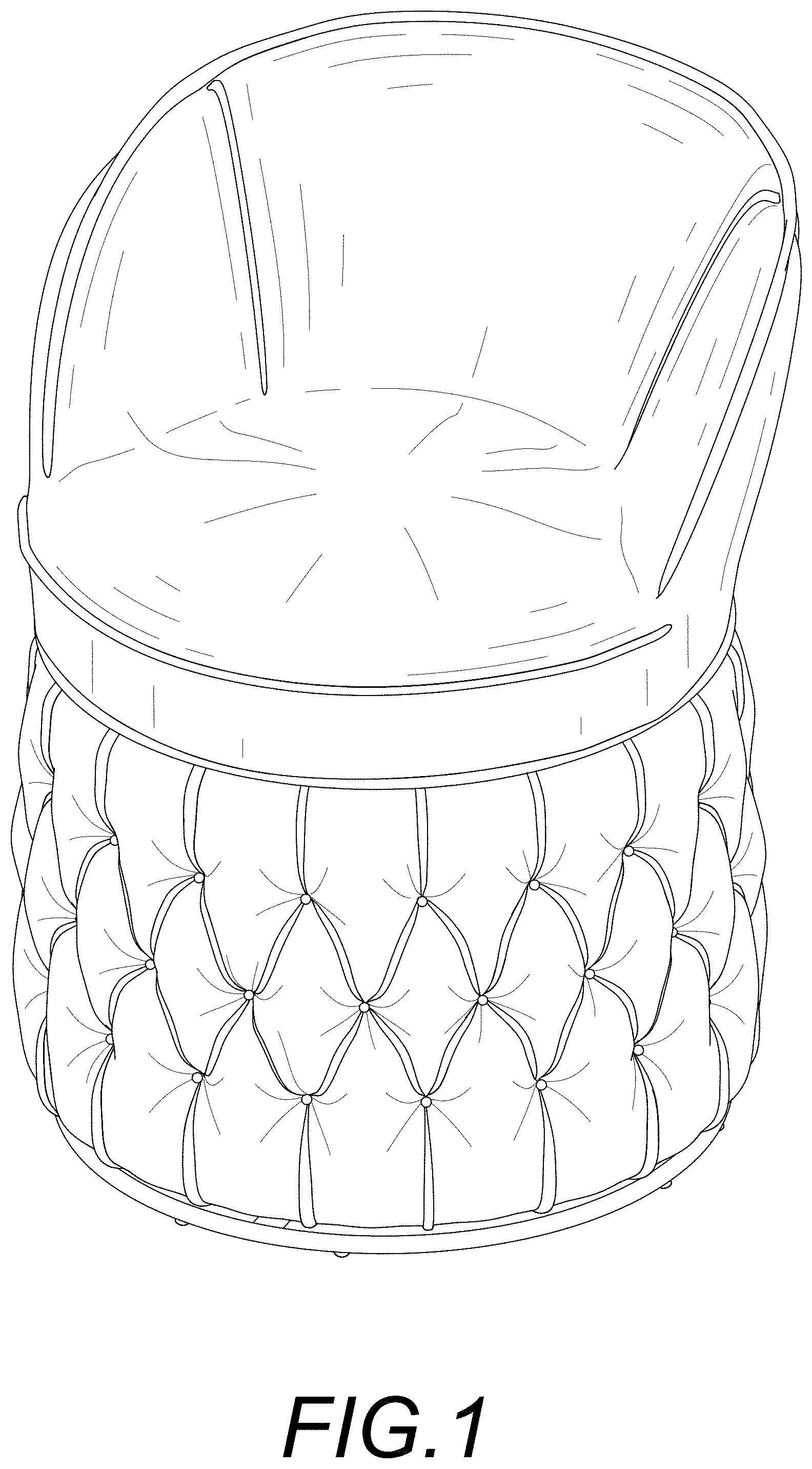

is a front perspective view of a chair showing my new design;

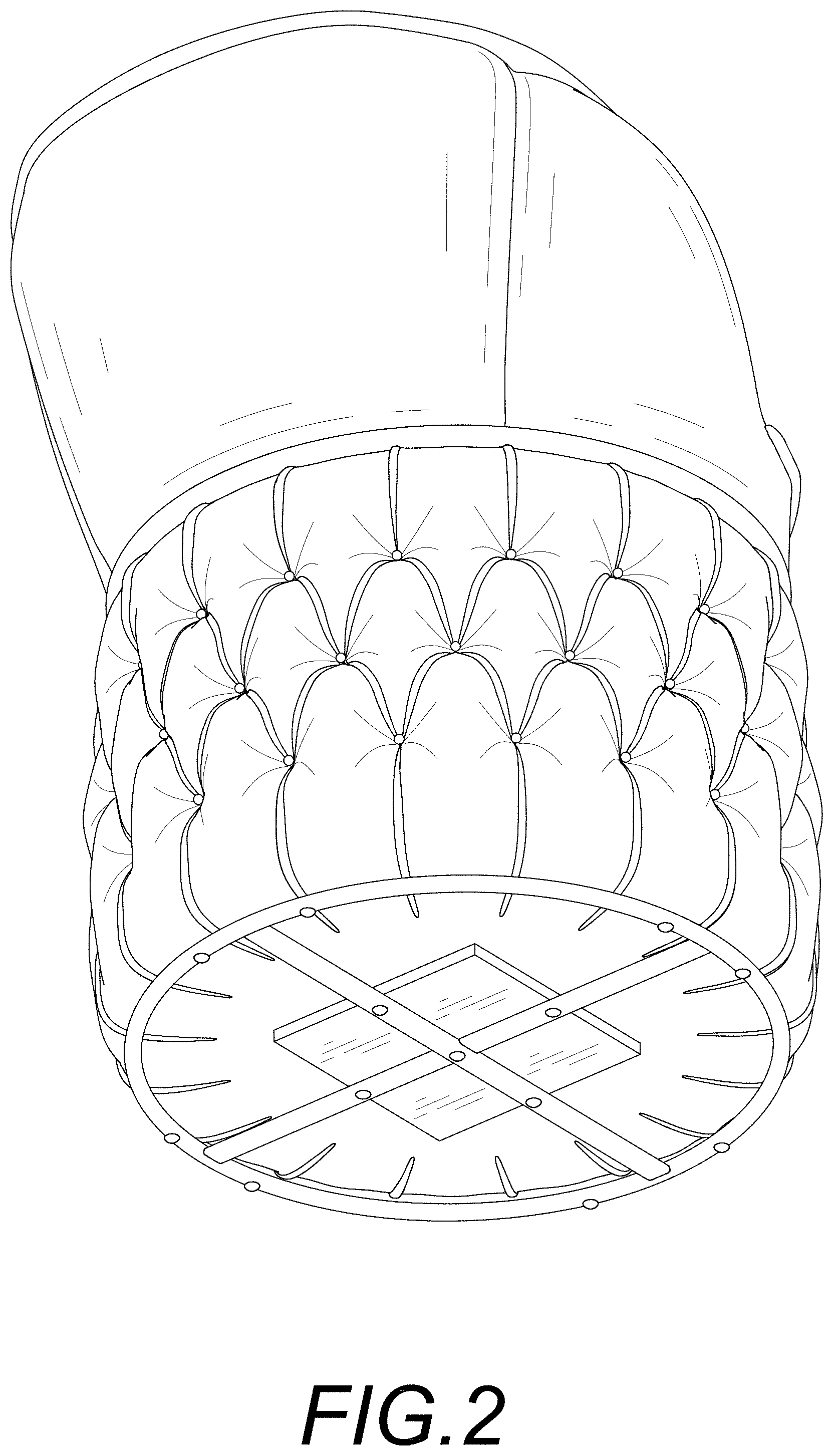

is a rear perspective view thereof;

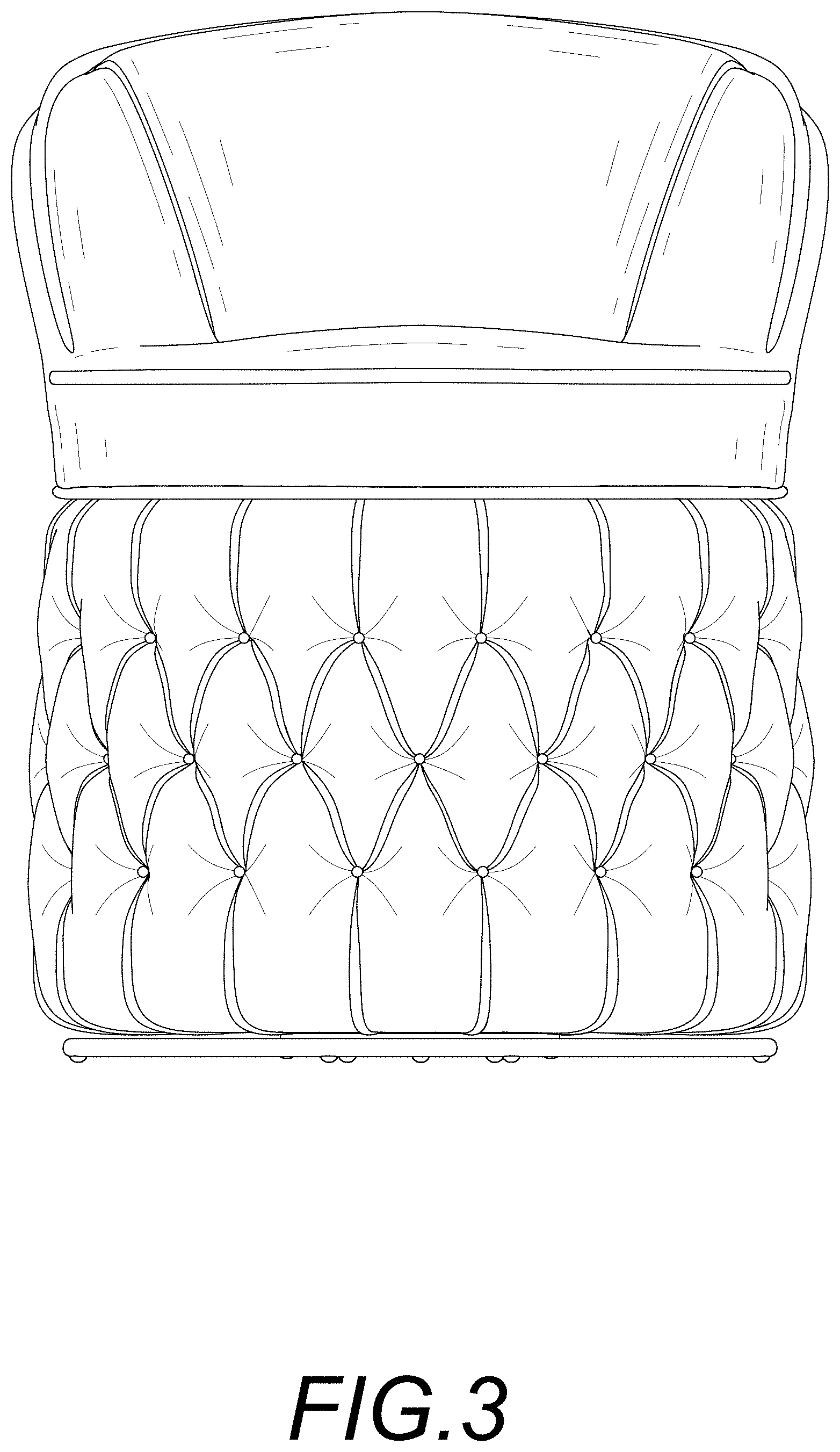

is a front elevation view thereof;

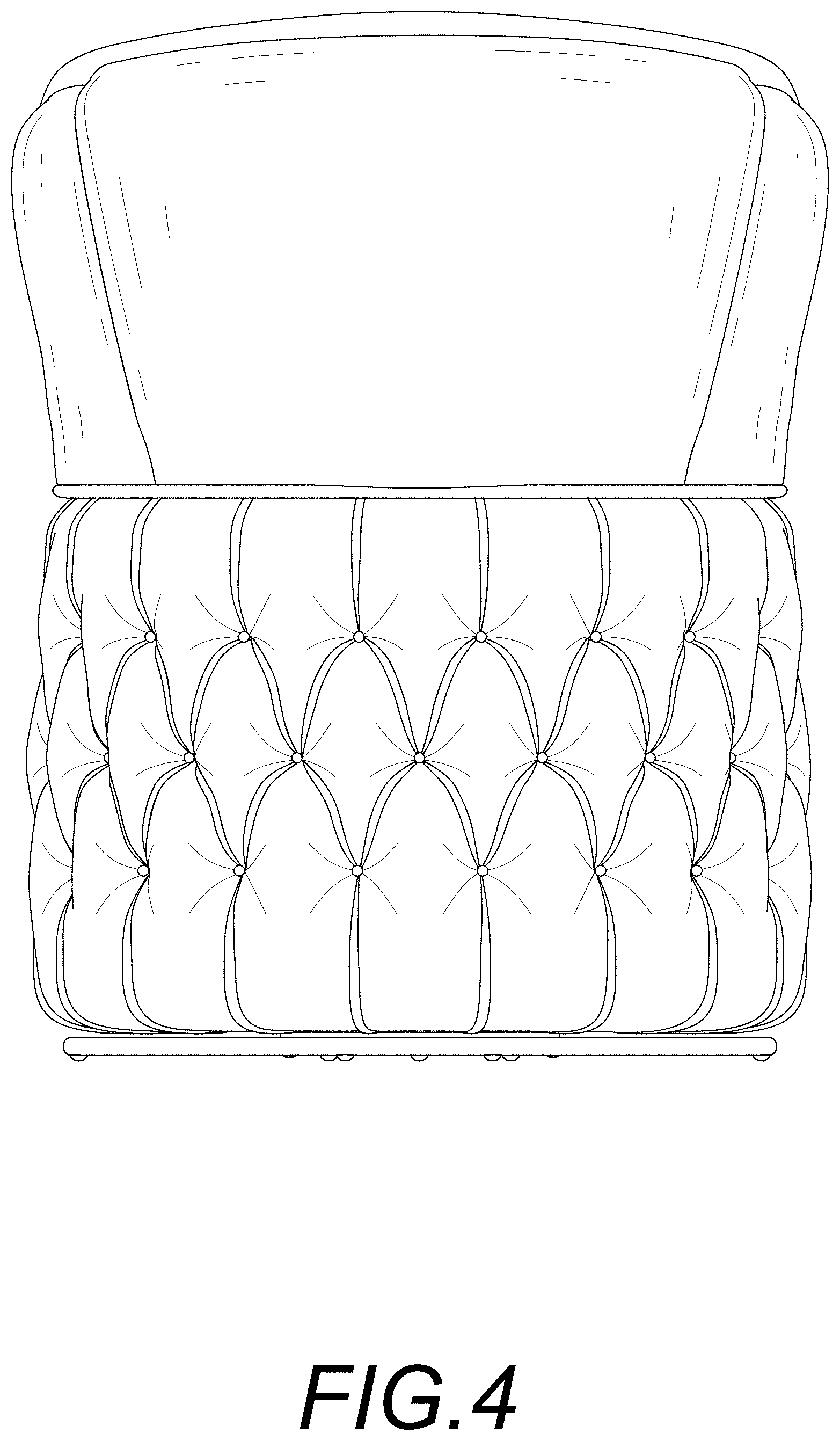

is a rear elevation view thereof;

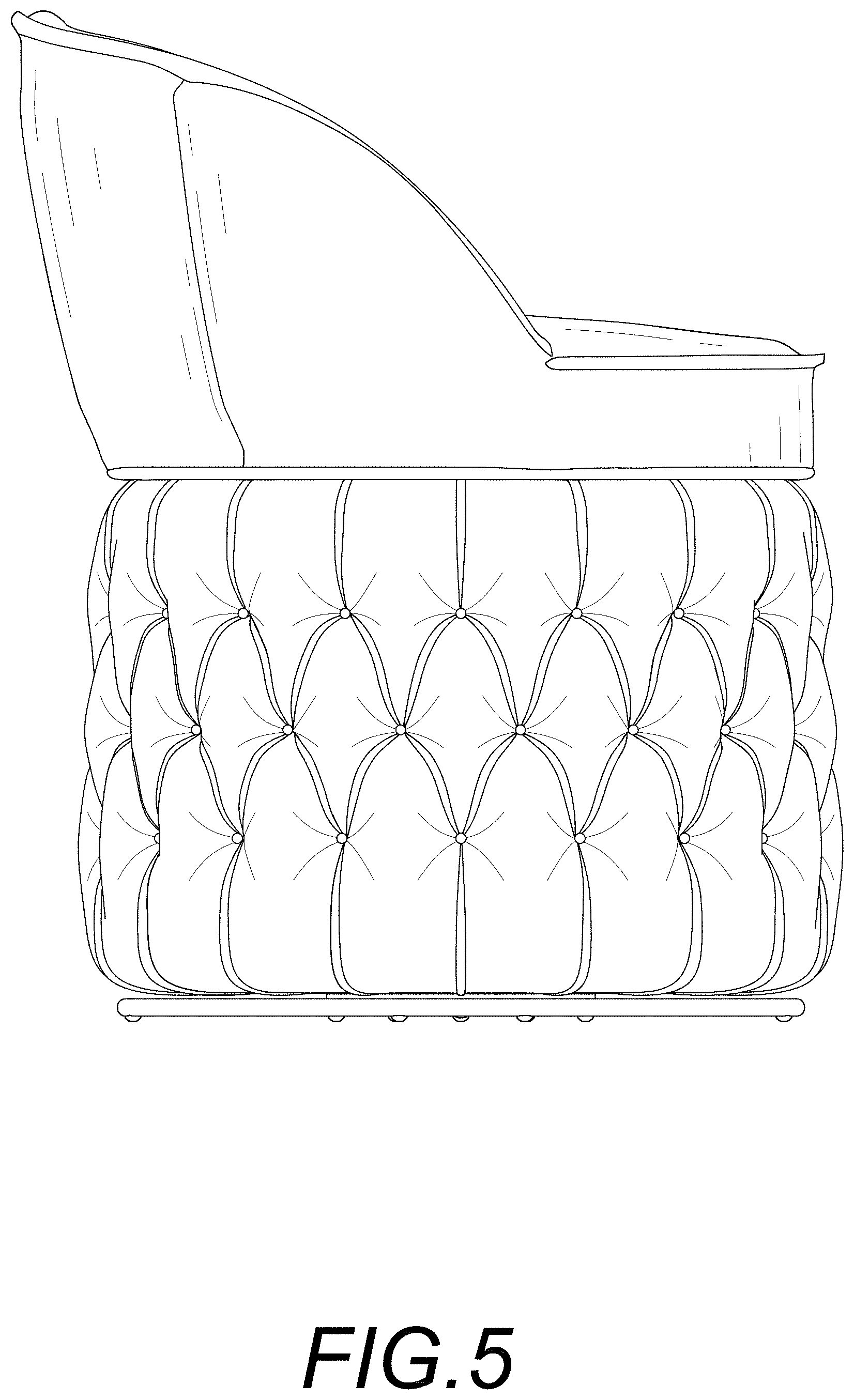

is a left side elevation view thereof, the right side elevation view being a mirror image of ;

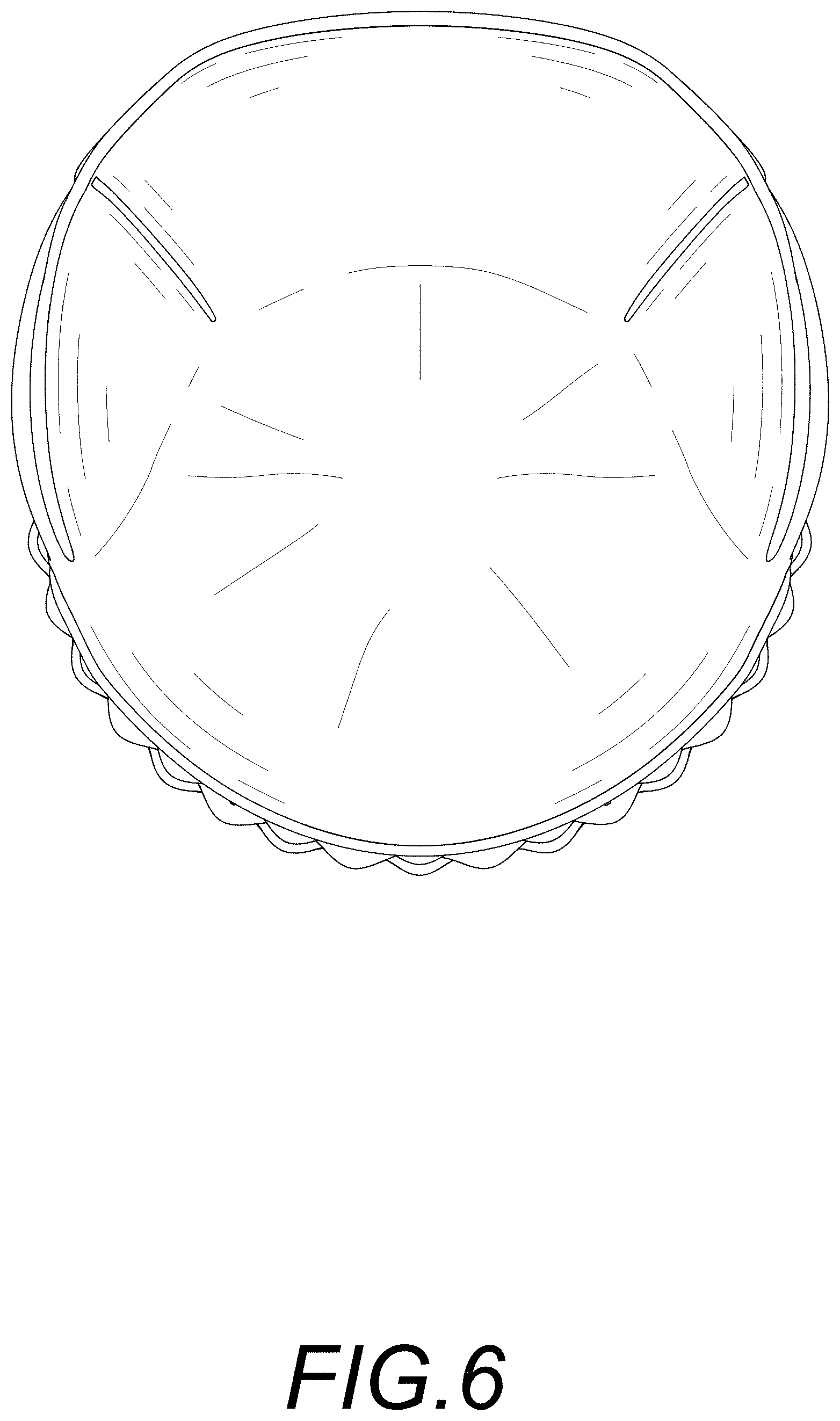

is a top plan view thereof; and,

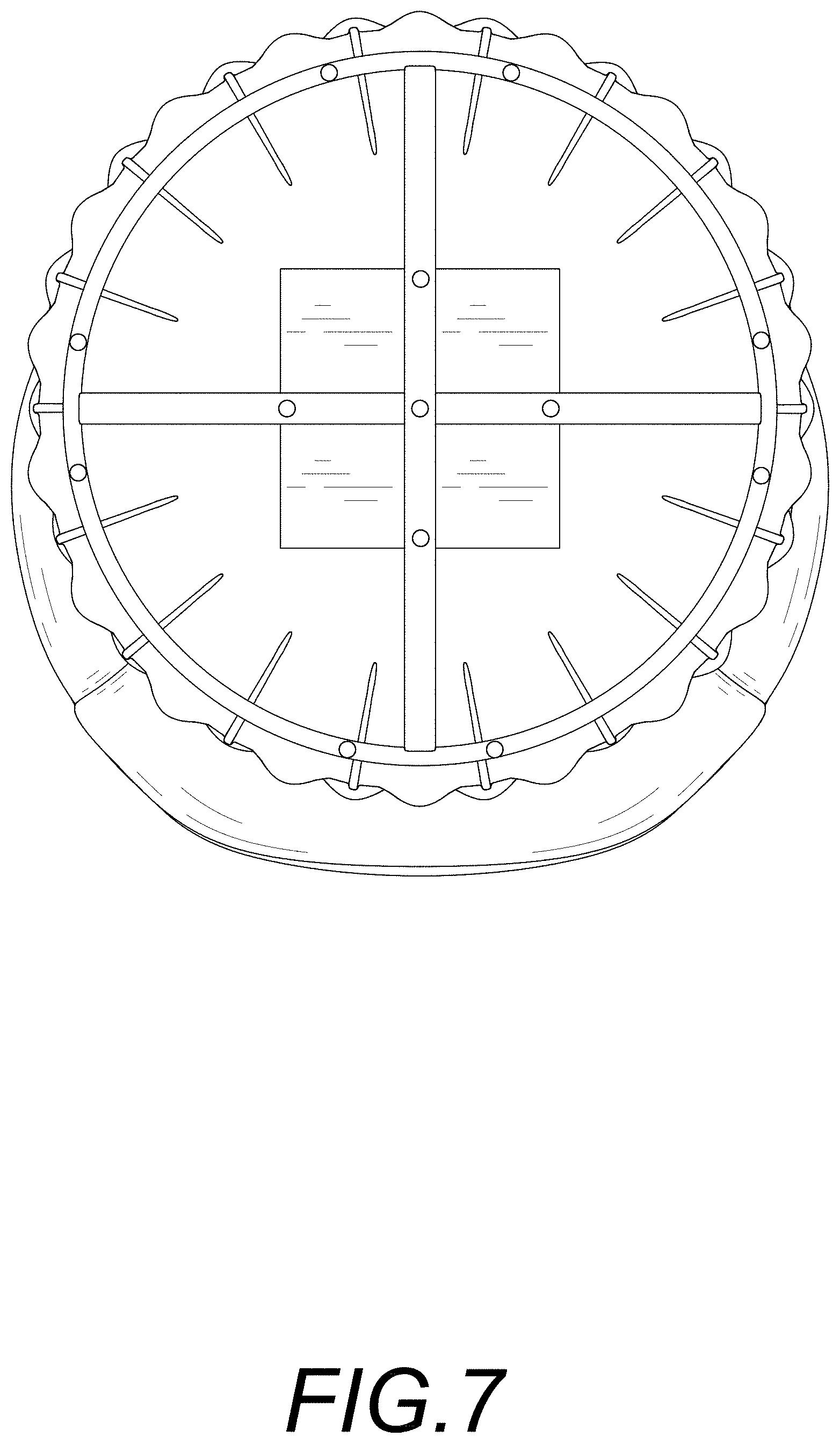

is a bottom plan view thereof.

Broken lines in the drawings depict portions of the chair that form no part of the claimed design.
