Patents/USD1000026

Fan

USD1000026No. D 1,000,026designGranted 9/26/2023
Patent USD1000026 — Fan — Figure 1
Fig. 1 · Fan

Claims (1)

Claim 1 (Independent)

I claim the ornamental design for a fan, as shown and described.

Full Description

Show full text →

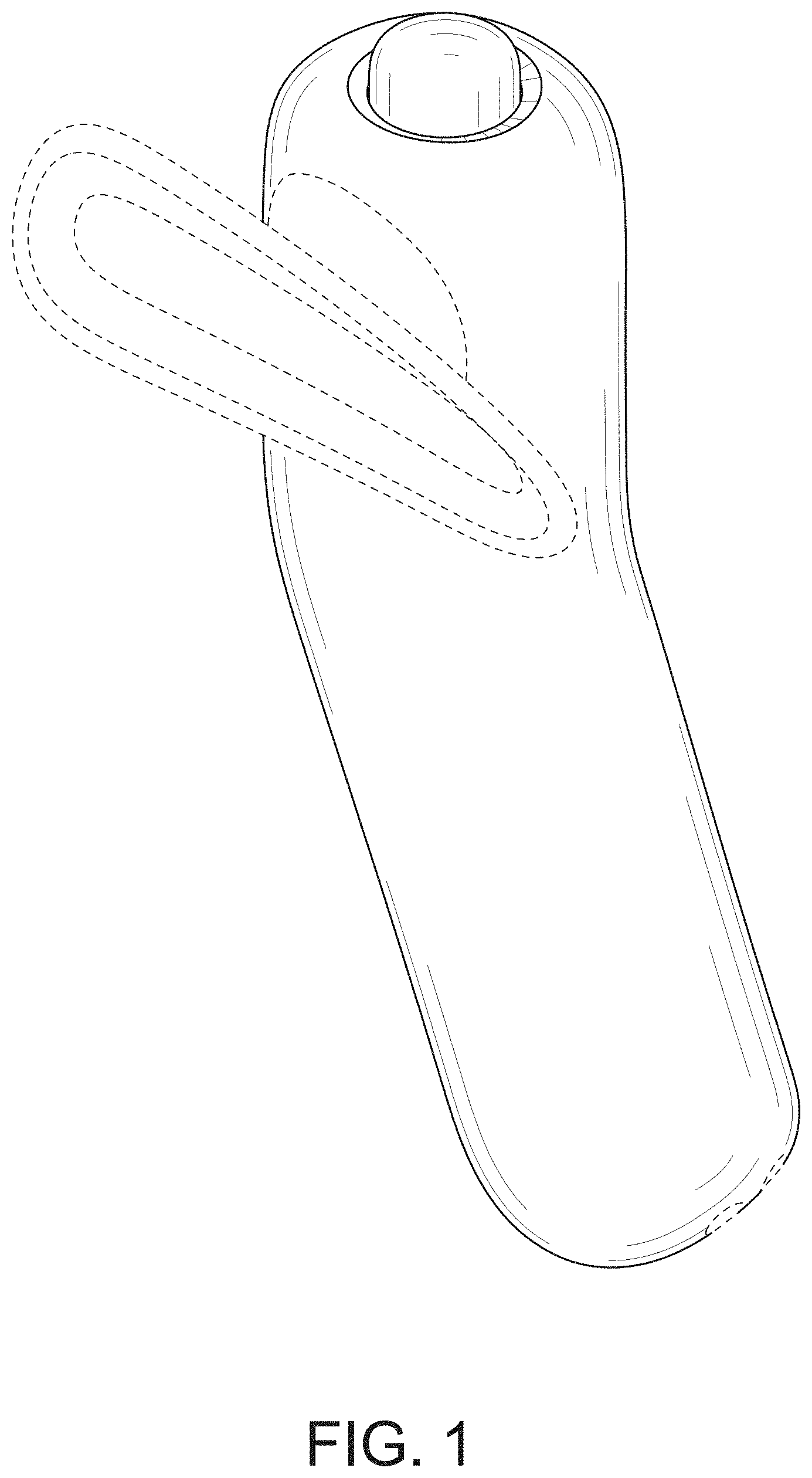

is a top, front, right side perspective view of a fan showing my new design;

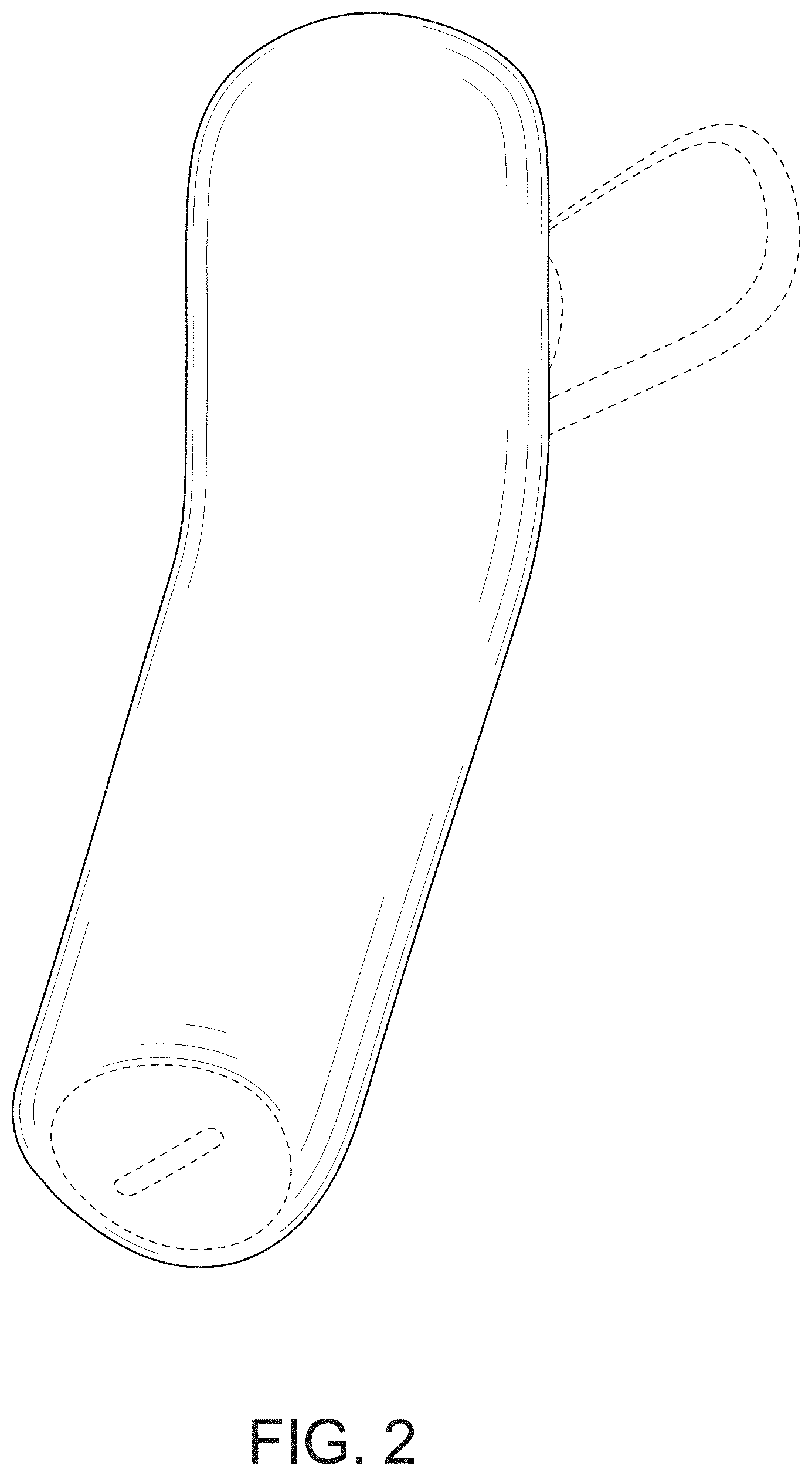

is a bottom, rear, right side perspective view thereof;

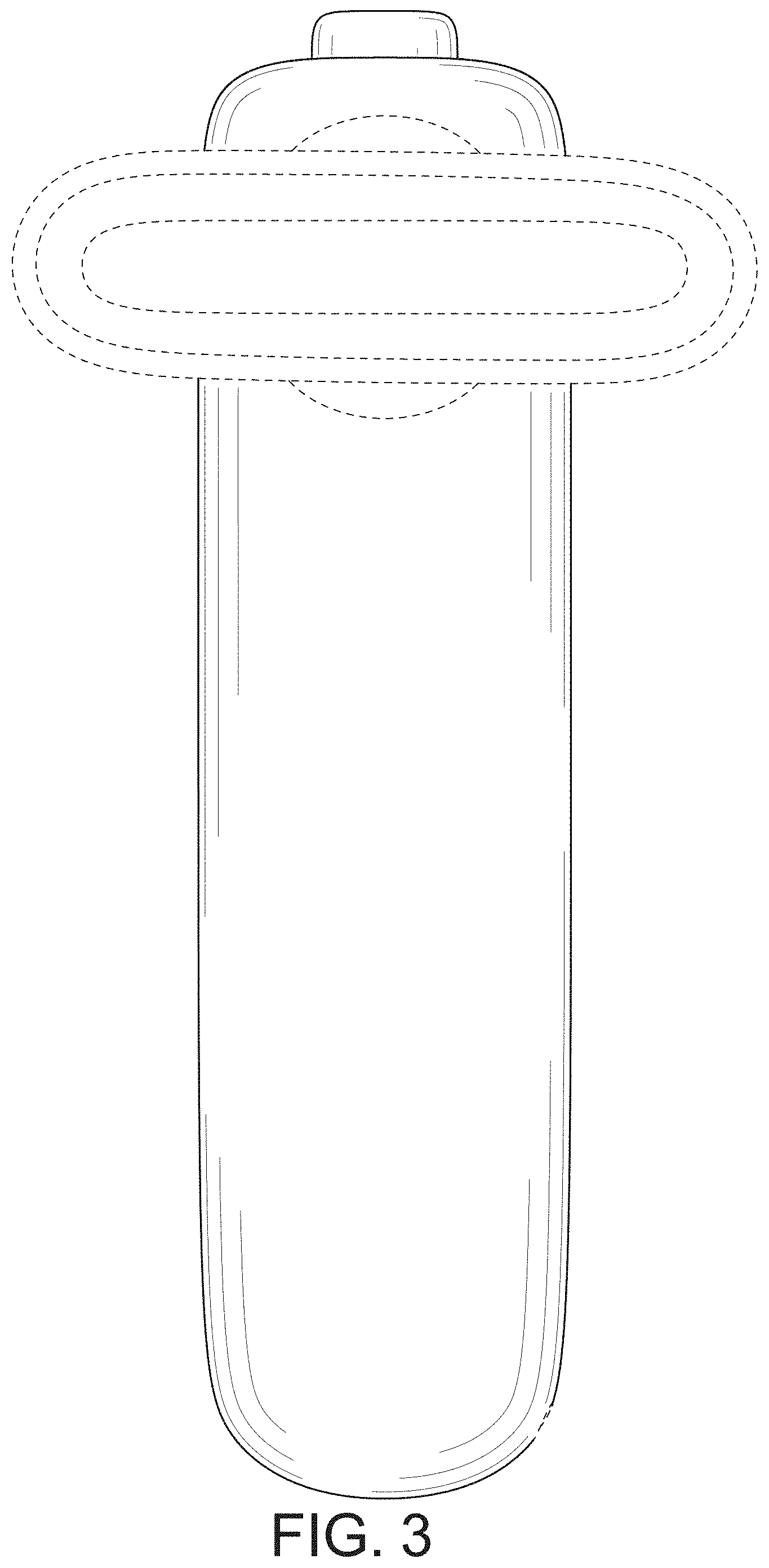

is a front view thereof;

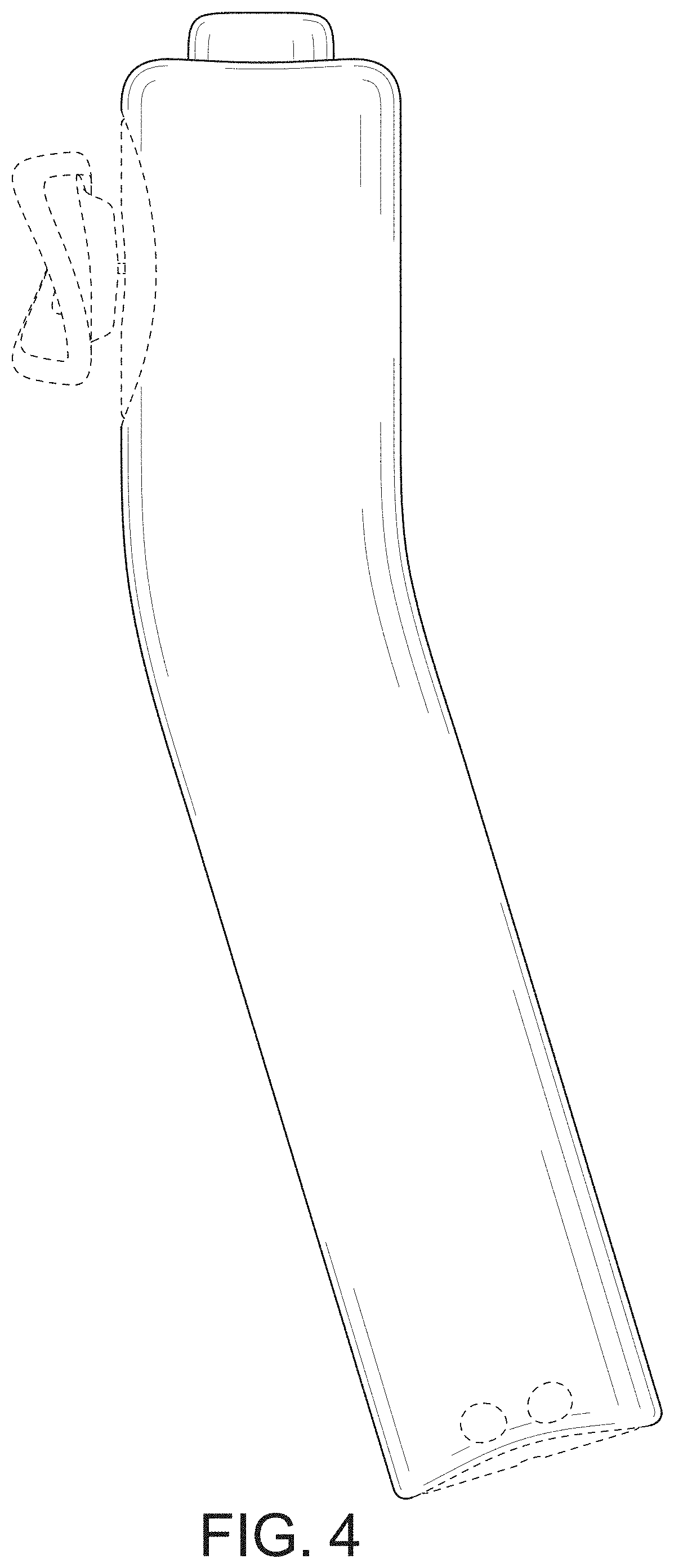

is a right side view thereof;

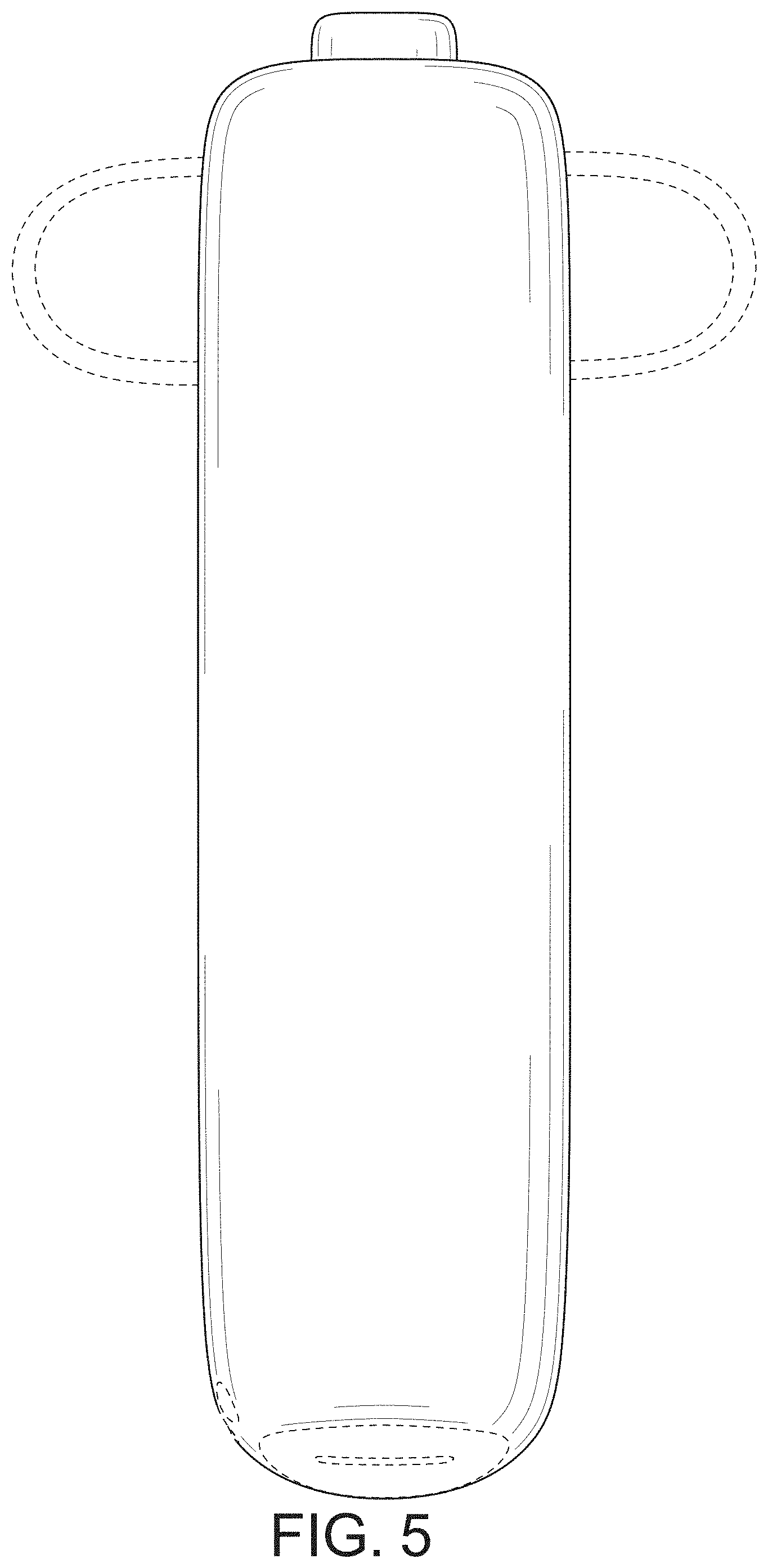

is a rear view thereof;

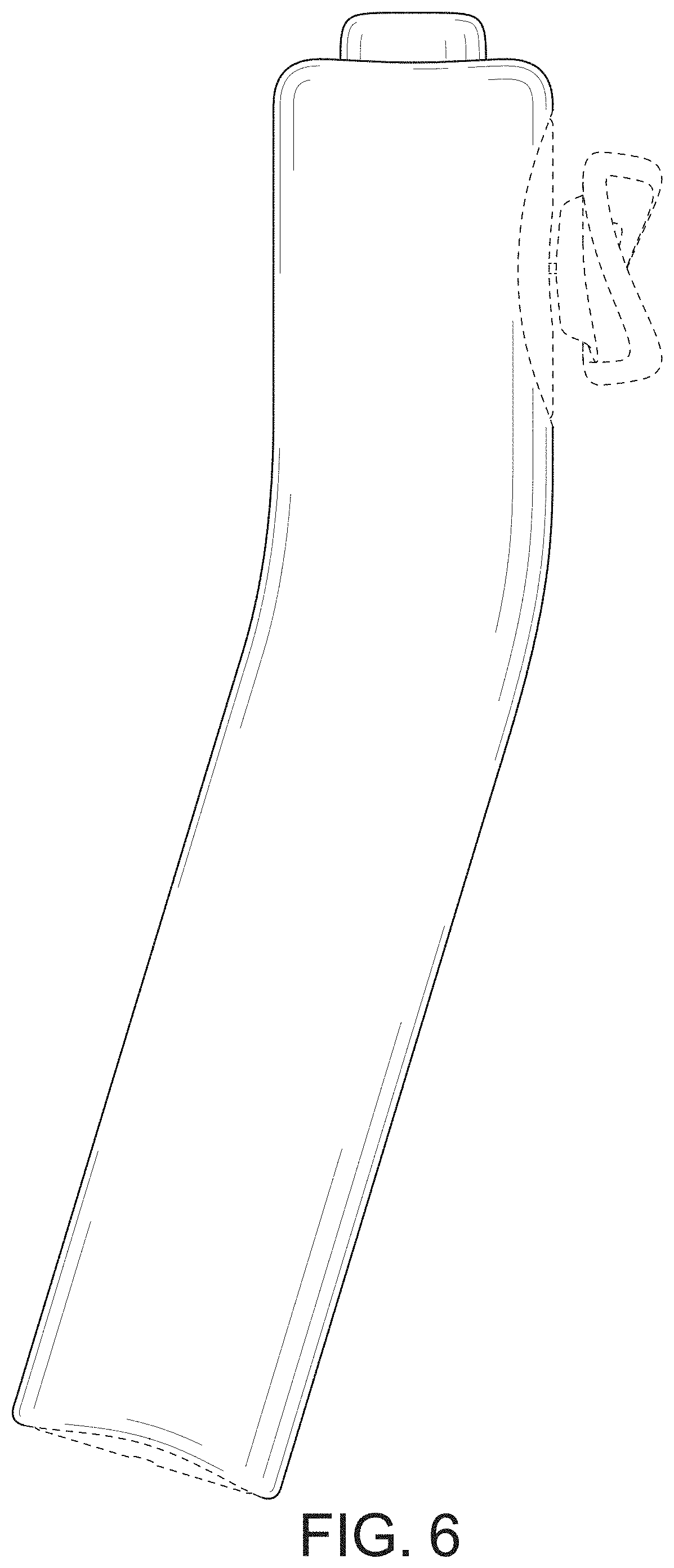

is a left side view;

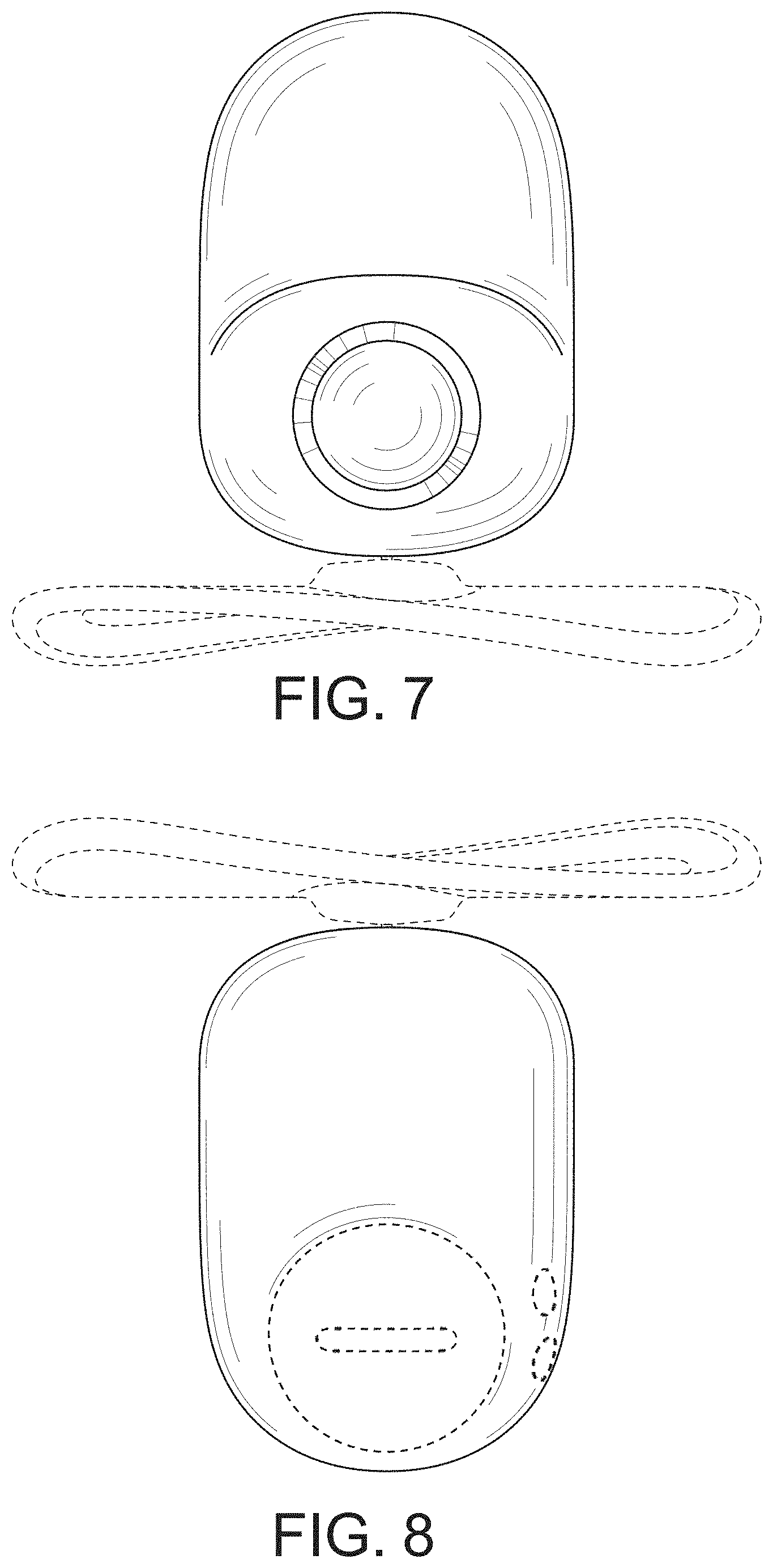

is a top view thereof; and,

is a bottom view thereof.

The broken line showing of a fan blade and portions of the fan form no part of the claimed design.
