Claims (1)
Claim 1 (Independent)
The ornamental design for a tray, as shown and described.
Full Description
Show full text →

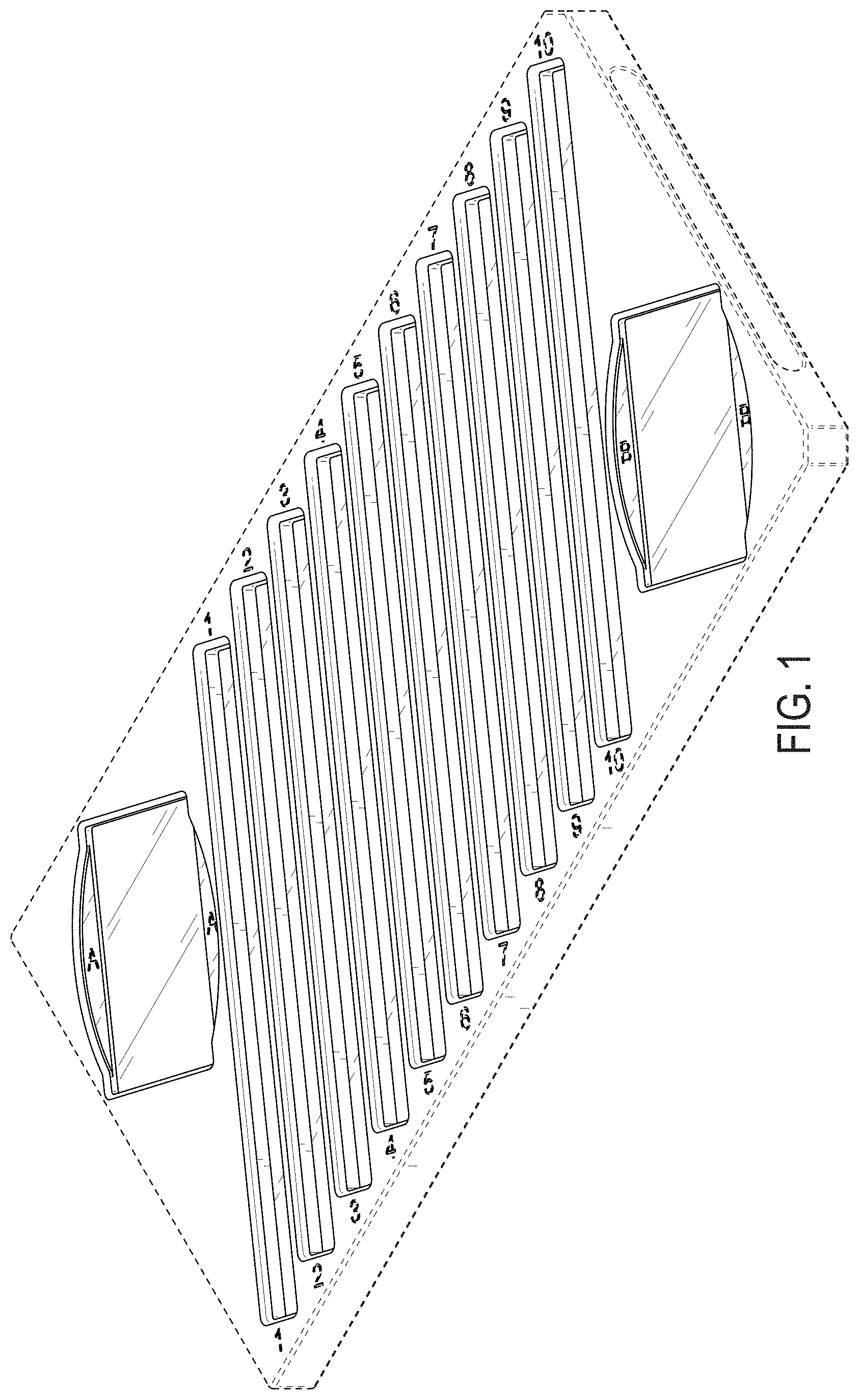

is a perspective view of a tray showing our new and ornamental design;

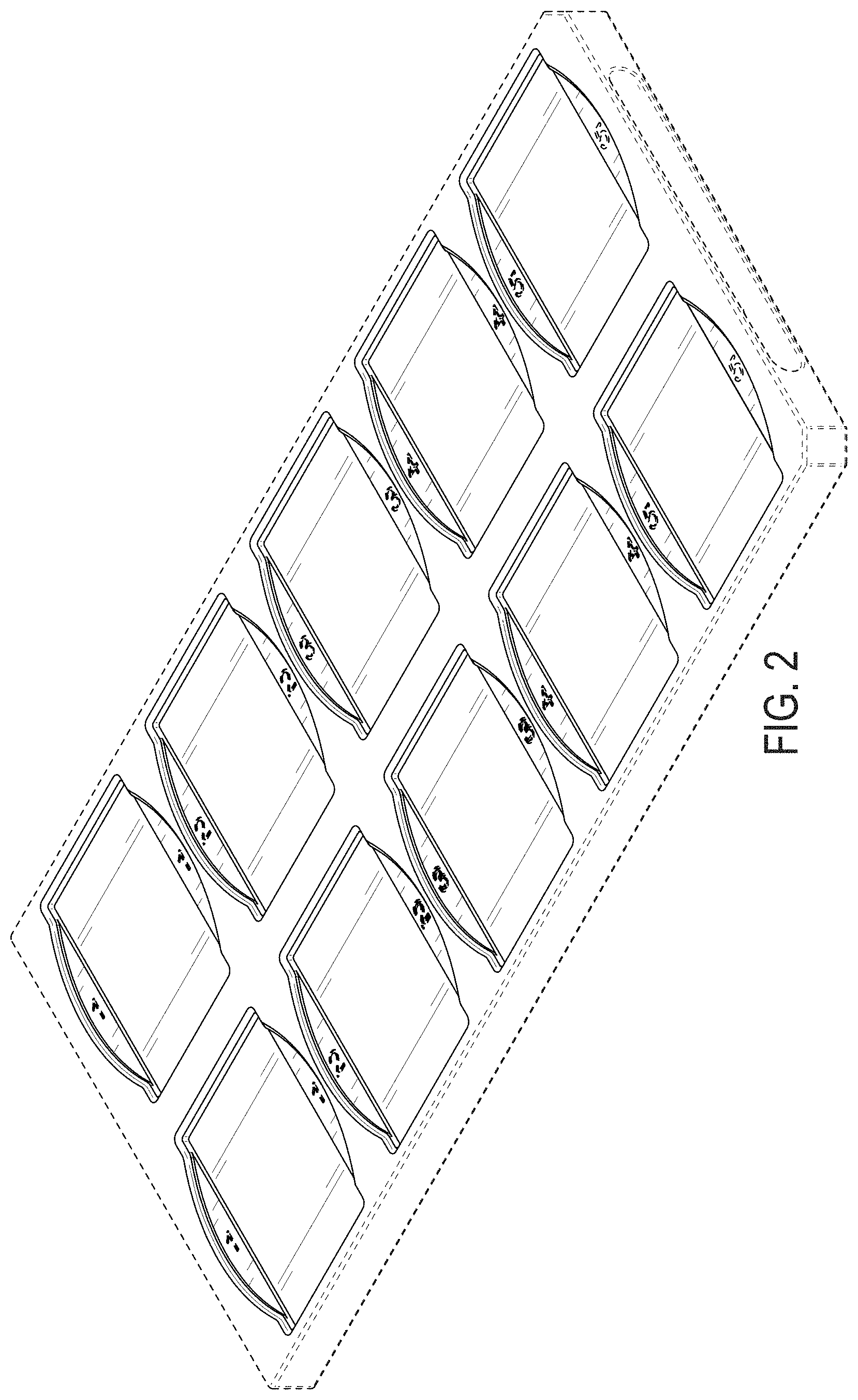

is an alternate perspective view thereof;

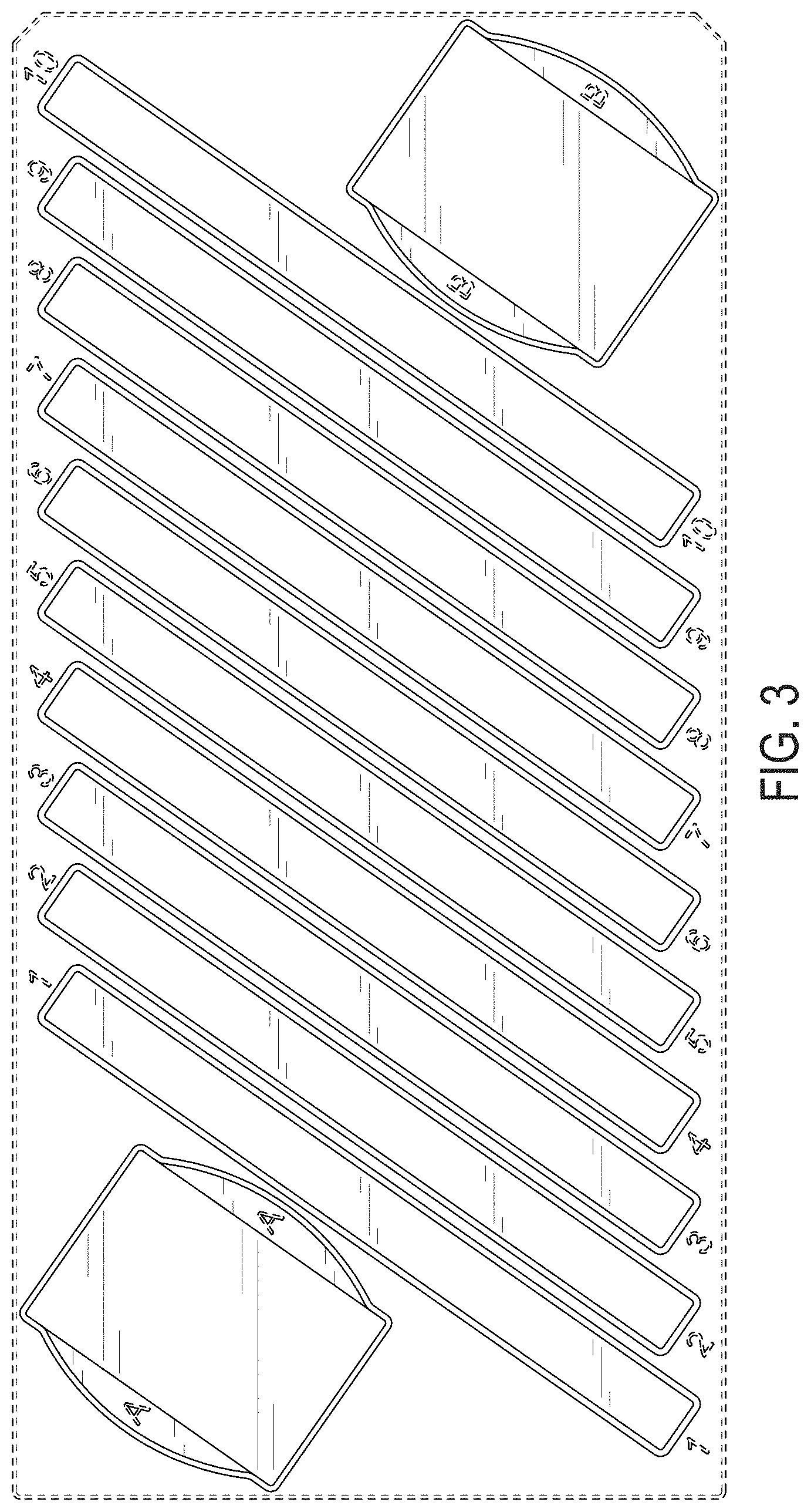

is a bottom plan view thereof; and,

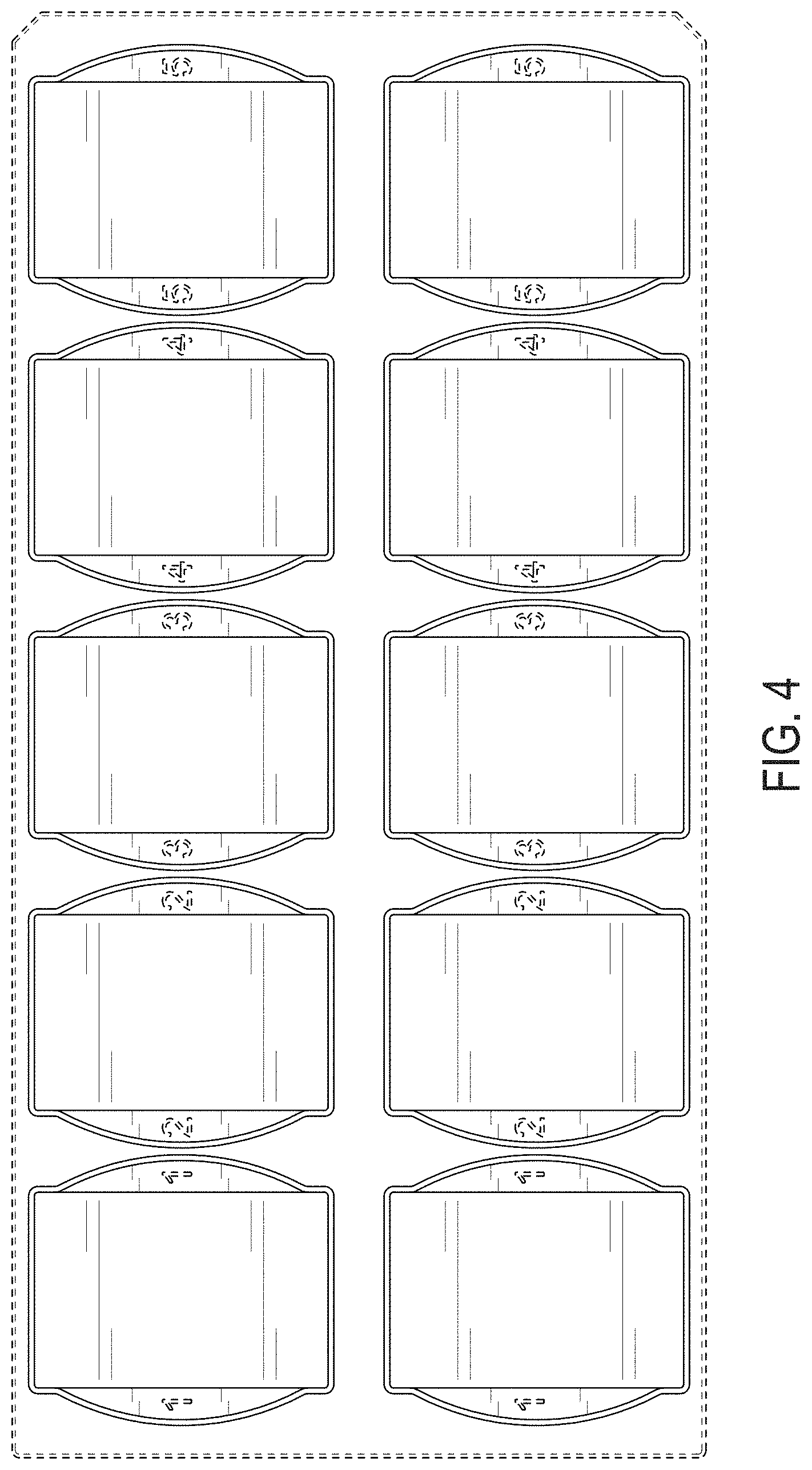

is a top plan view thereof.
The portions of the tray shown in broken lines in the figures attached hereto form no part of the claimed design.
