Nerve Stimulator

FIG. 1 is a top front perspective view of a nerve stimulator, showing our new design;

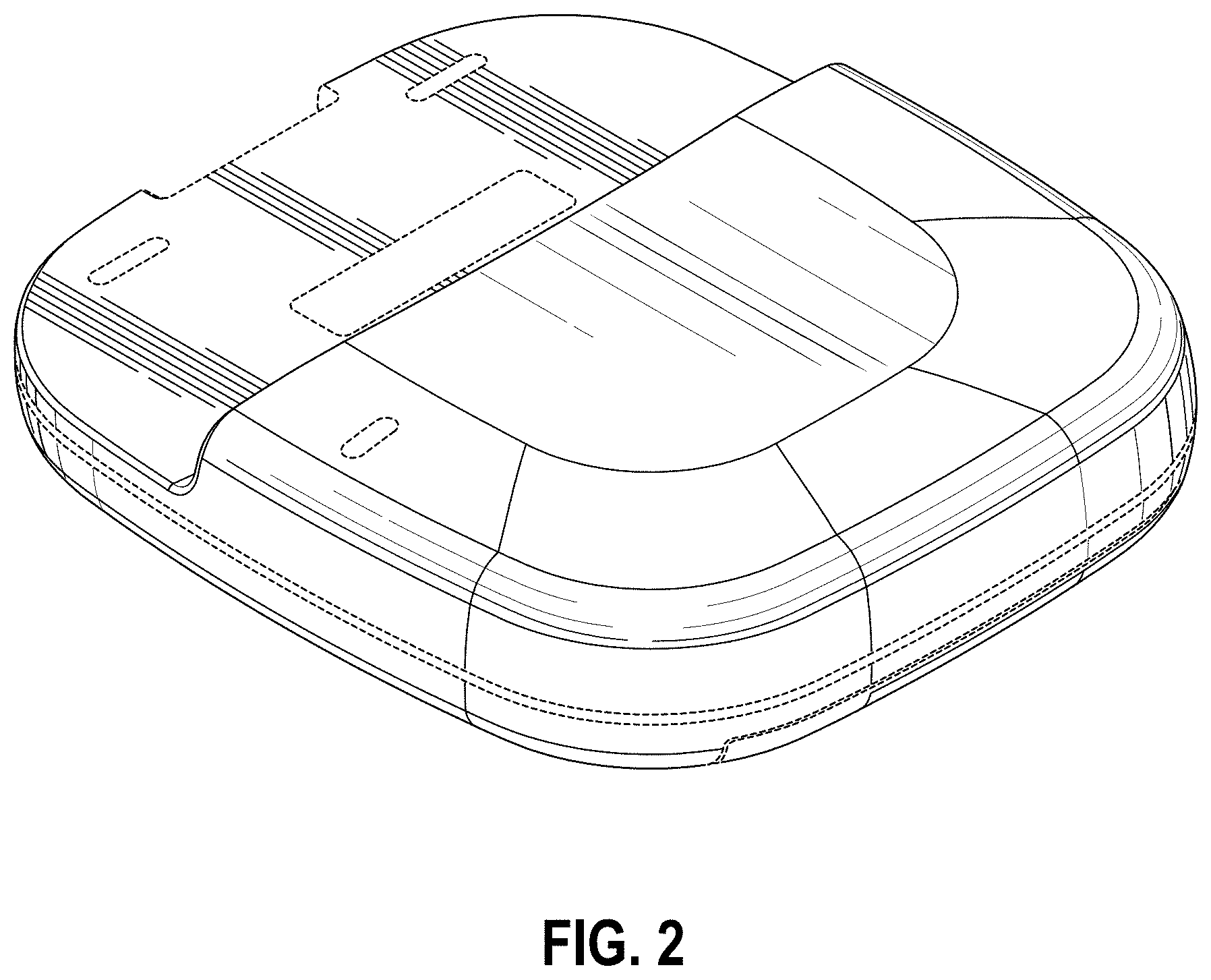

FIG. 2 is a top rear perspective view of the nerve stimulator of FIG. 1 ;

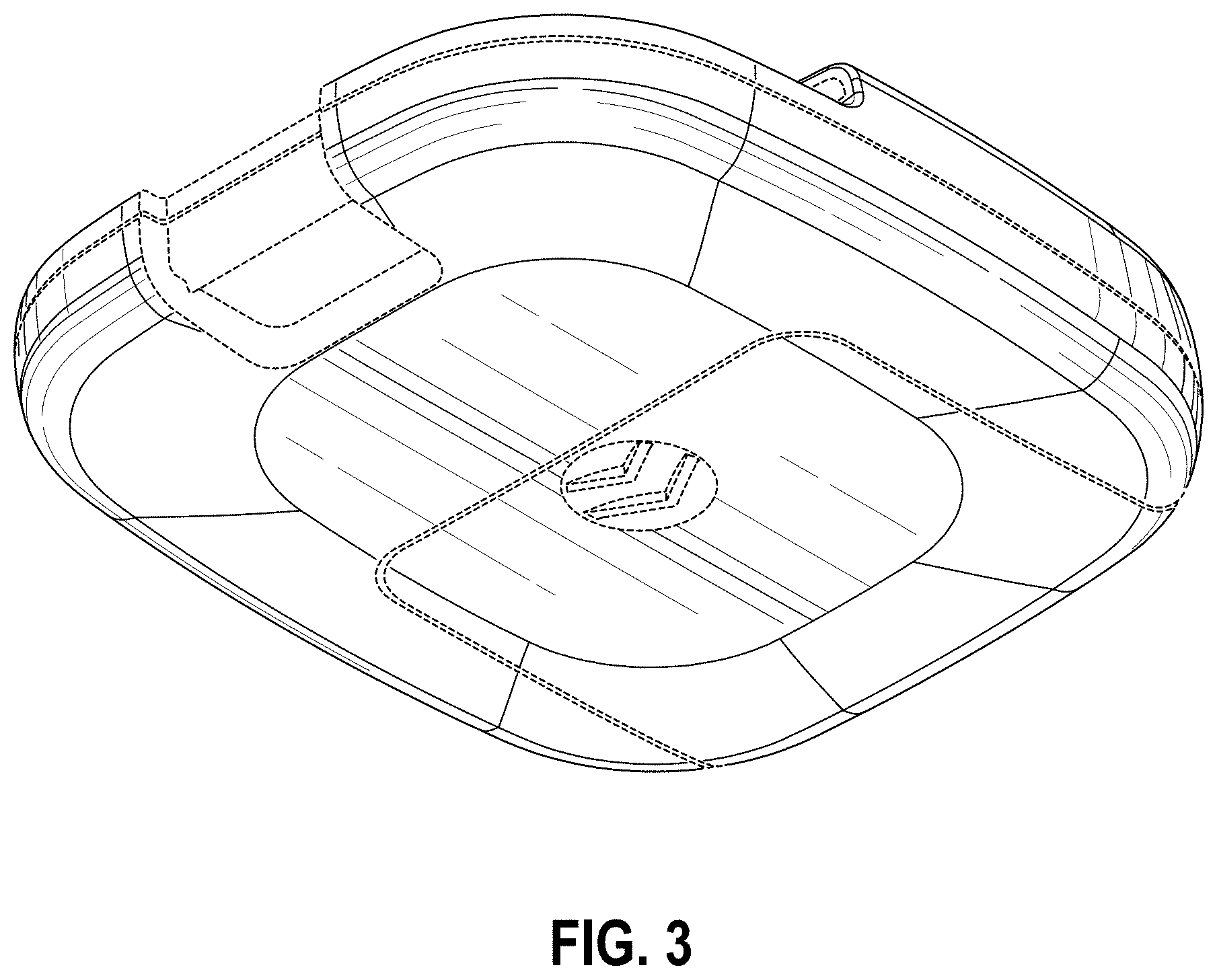

FIG. 3 is a bottom front perspective view of the nerve stimulator of FIG. 1 ;

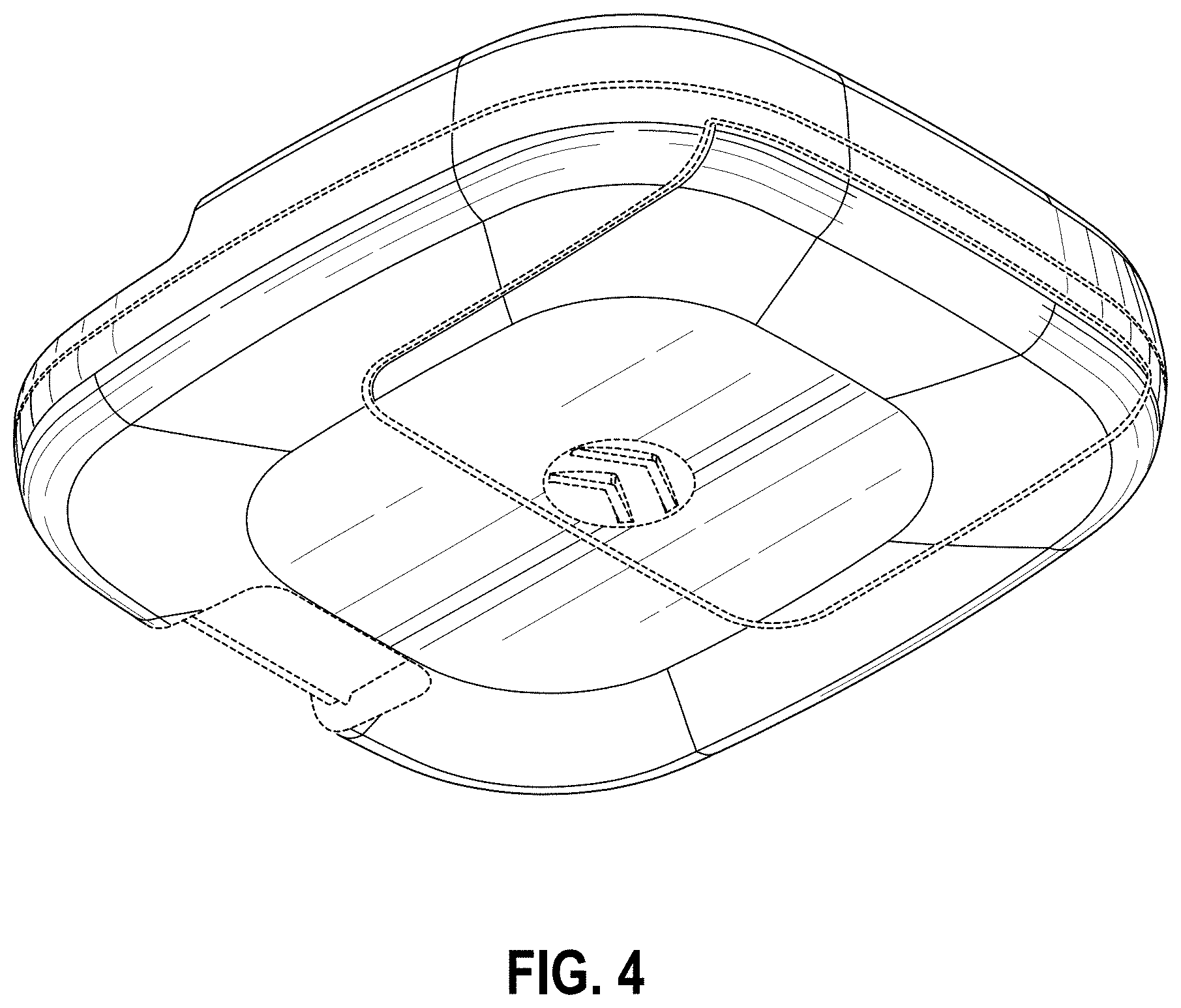

FIG. 4 is a bottom rear perspective view of the nerve stimulator of FIG. 1 ;

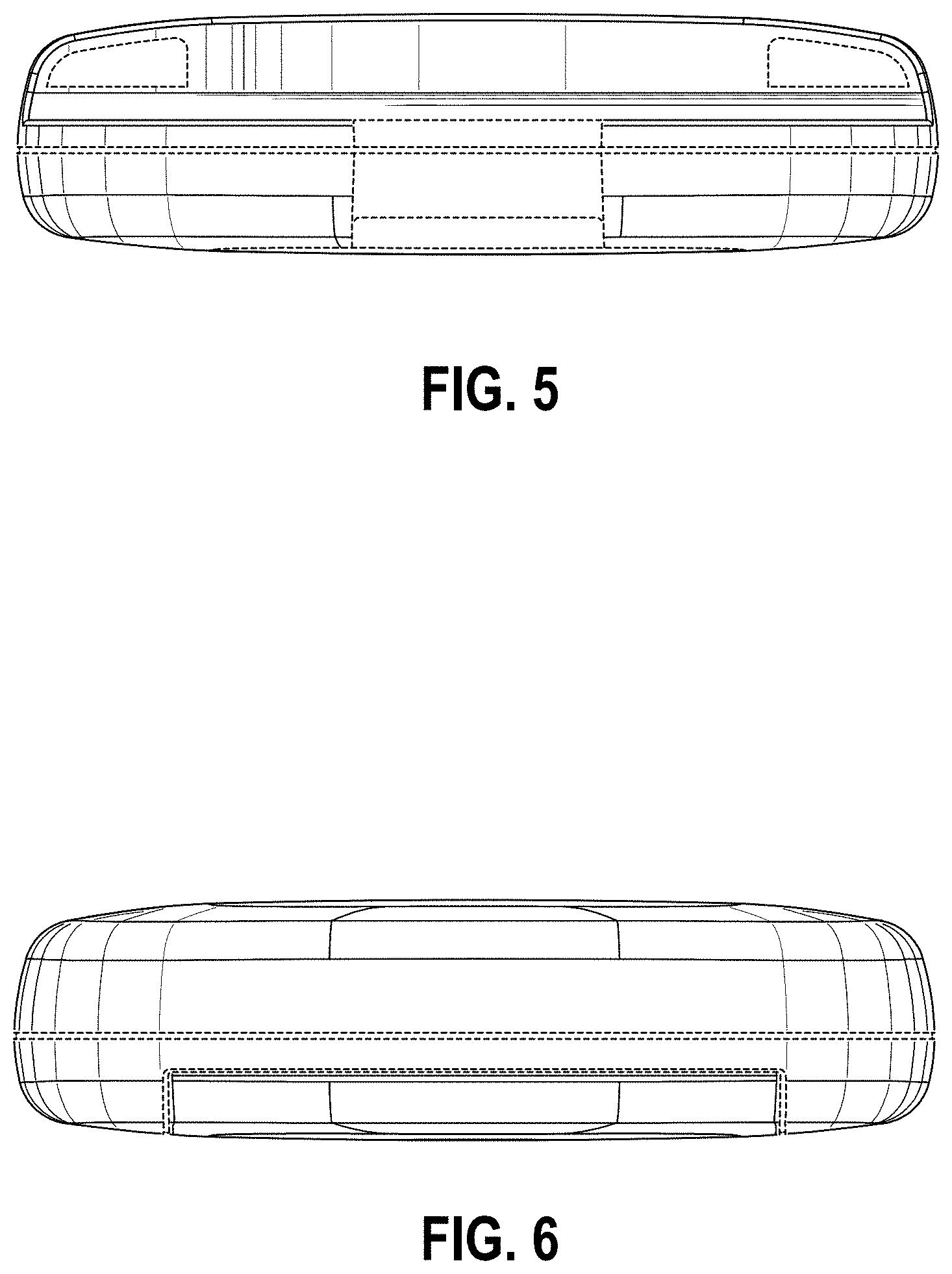

FIG. 5 is a front elevation view of the nerve stimulator of FIG. 1 ;

FIG. 6 is a rear elevation view of the nerve stimulator of FIG. 1 ;

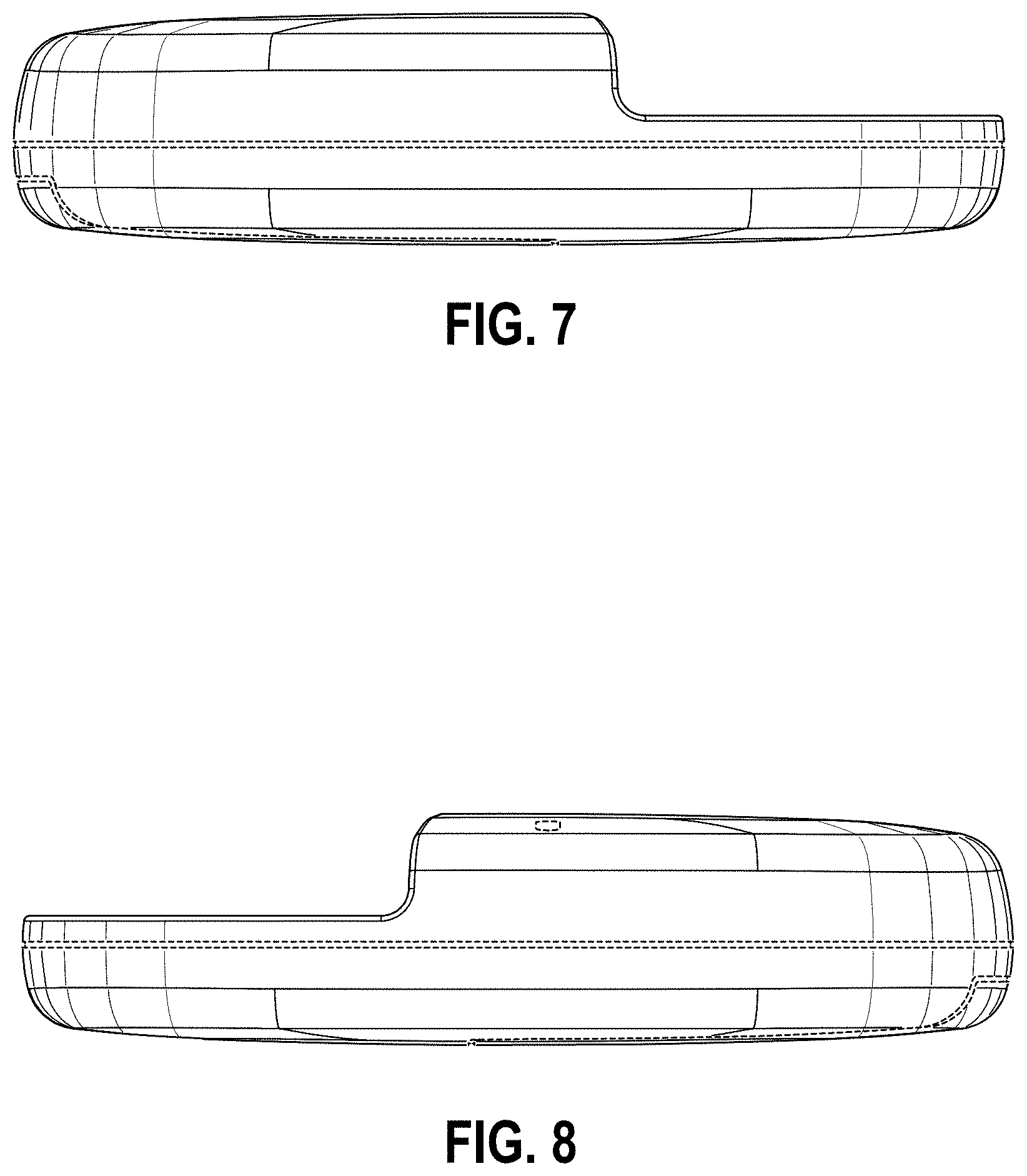

FIG. 7 is a left elevation view of the nerve stimulator of FIG. 1 ;

FIG. 8 is a right elevation view of the nerve stimulator of FIG. 1 ;

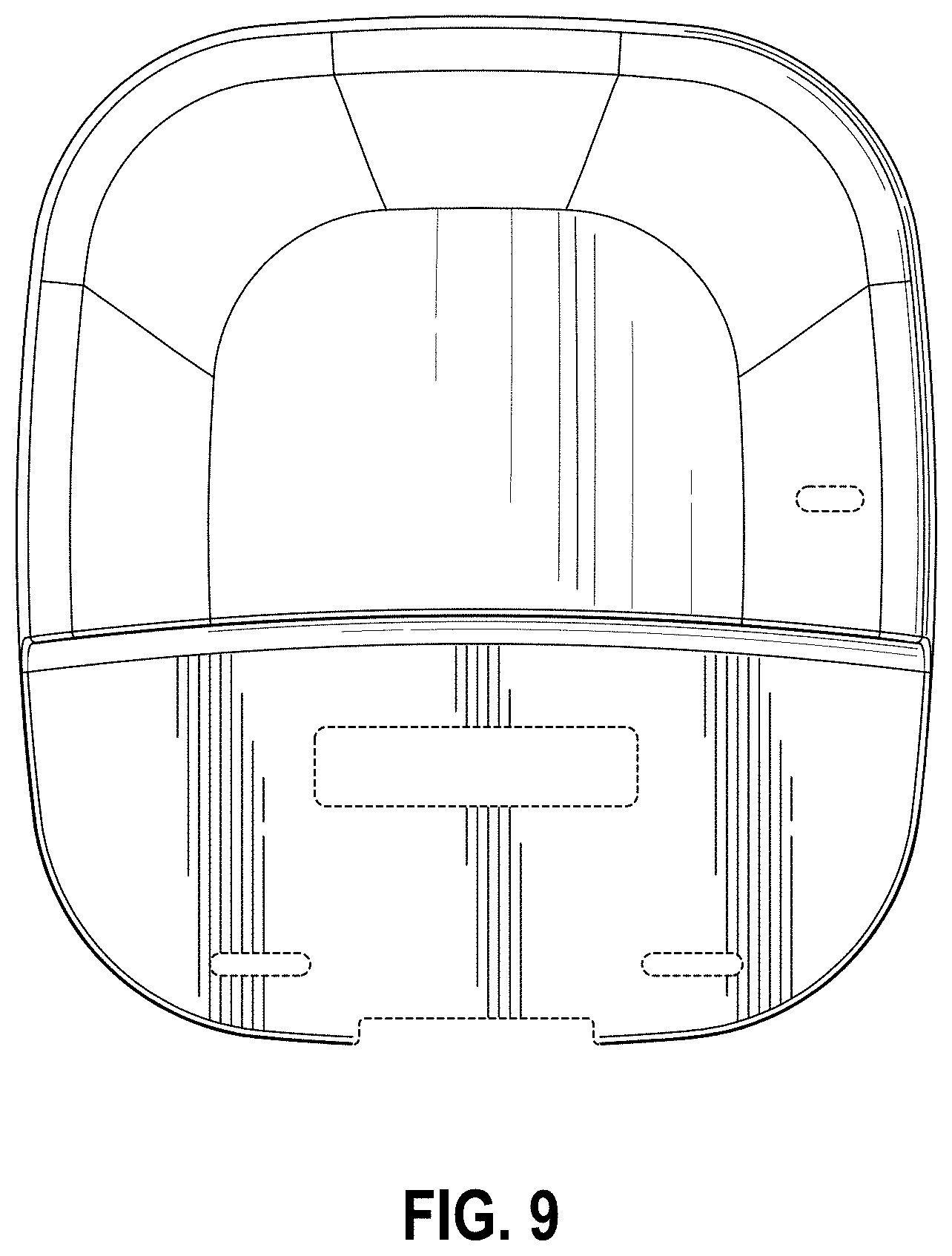

FIG. 9 is a top plan view of the nerve stimulator of FIG. 1 ; and,

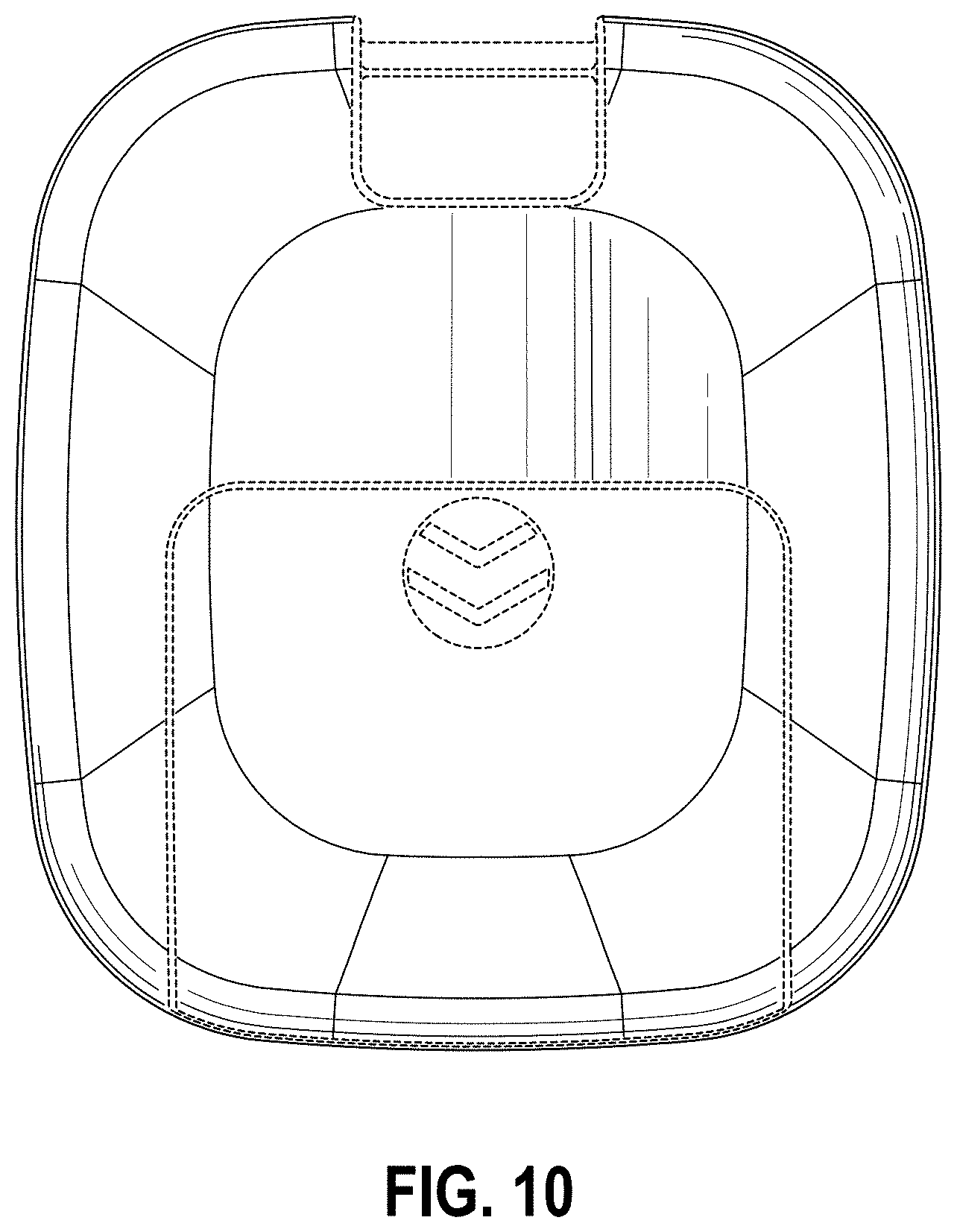

FIG. 10 is a bottom plan view of the nerve stimulator of FIG. 1 .

The nerve stimulator features shown in broken lines are unclaimed environment, and form no part of the claimed design.
