Air Purifier

USD0999894No. D 999,894designGranted 9/26/2023
Patent USD0999894 — Air purifier — Figure 1
Fig. 1 · Air Purifier

Claims (1)

Claim 1 (Independent)

The ornamental design for an air purifier, as shown and described.

Full Description

Show full text →

is a front perspective view of an air purifier showing our new design;

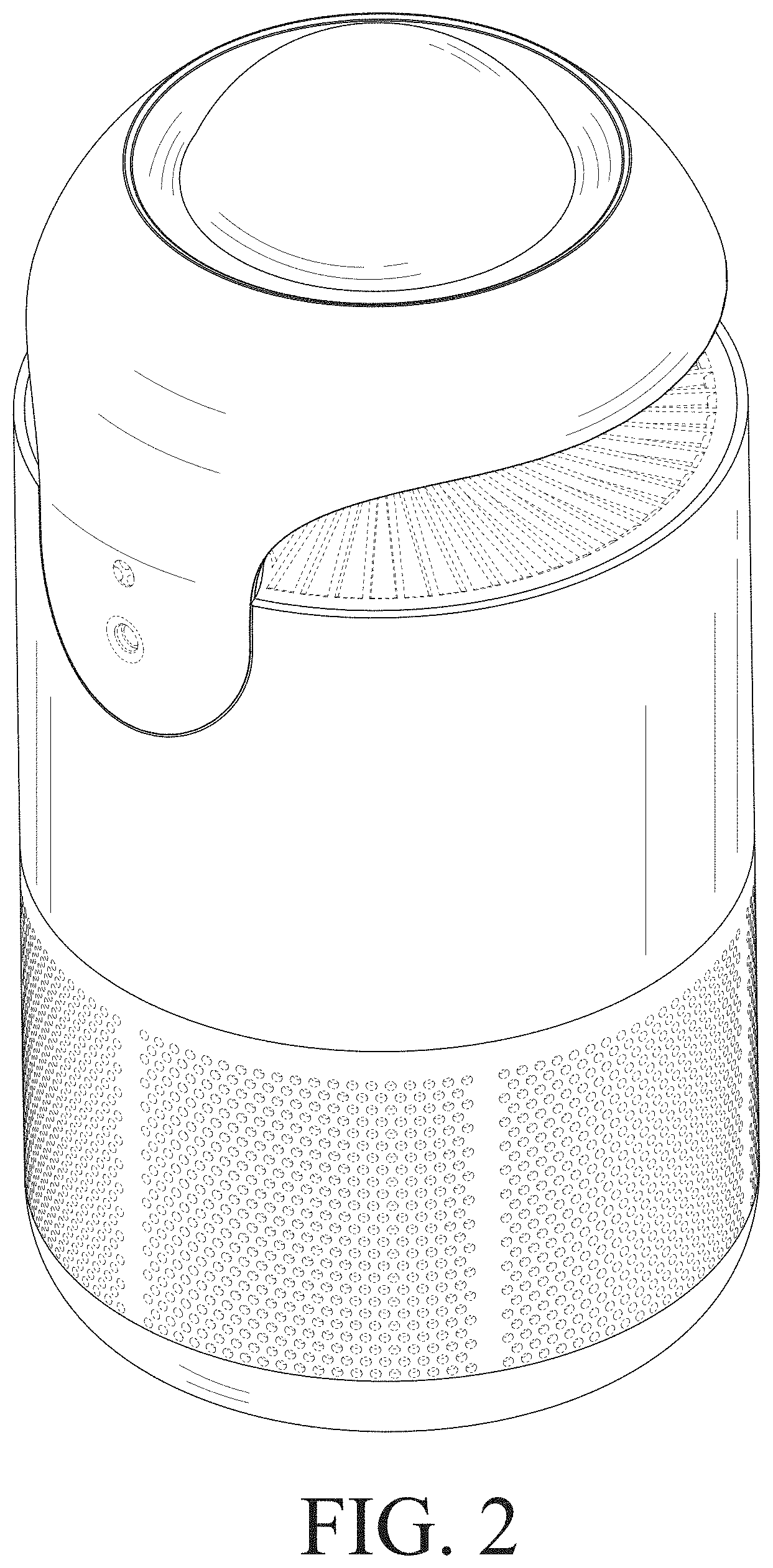

is a rear perspective view thereof;

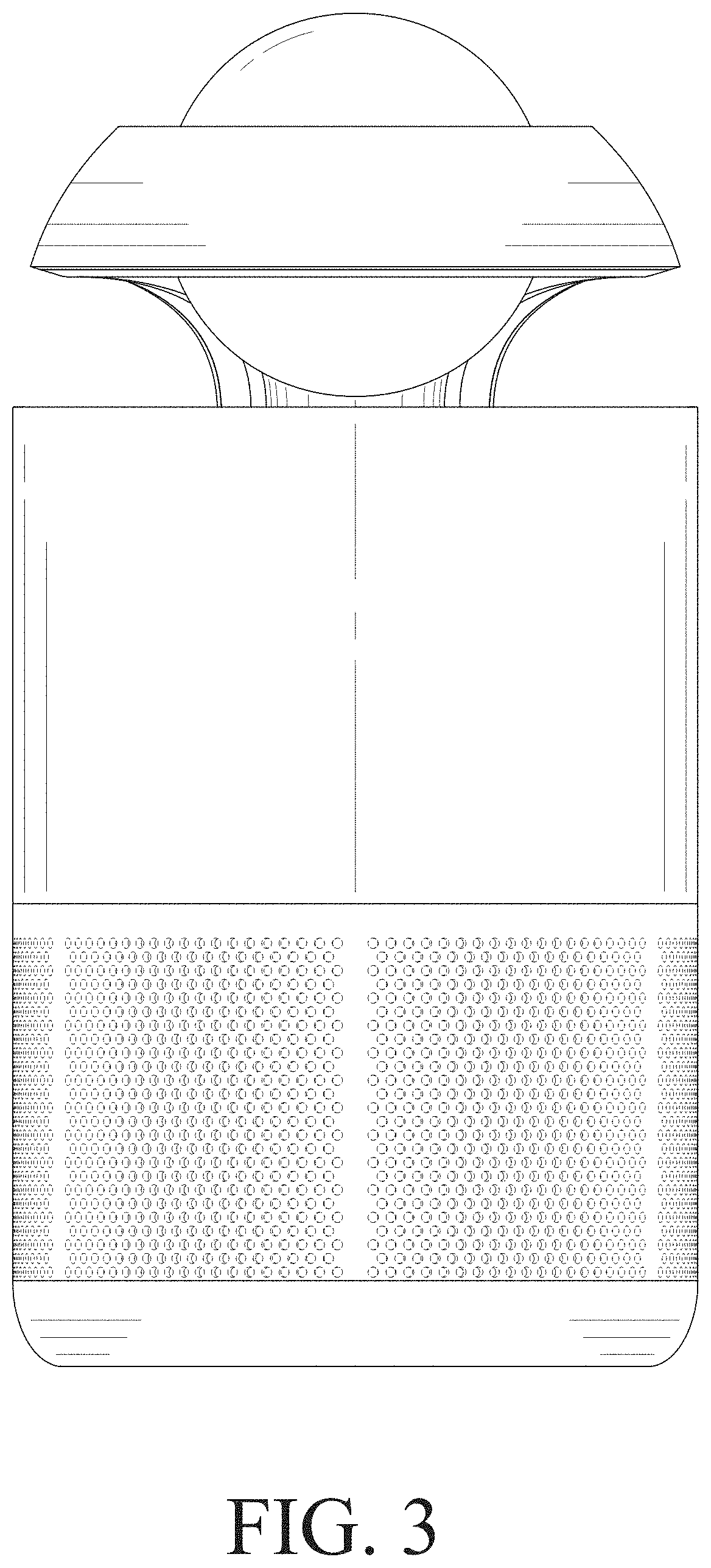

is a front elevational view thereof;

is a rear elevational view thereof;

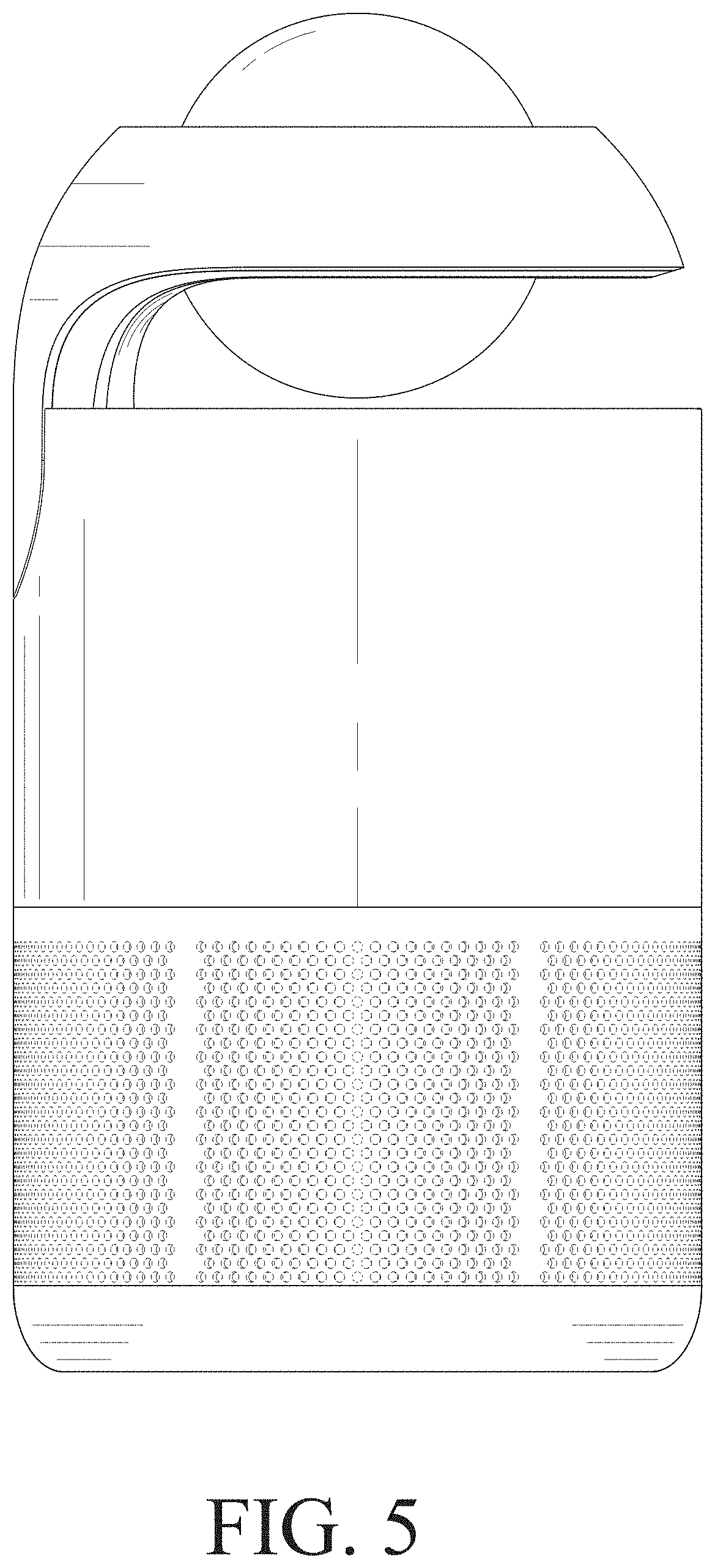

is a left-side elevational thereof;

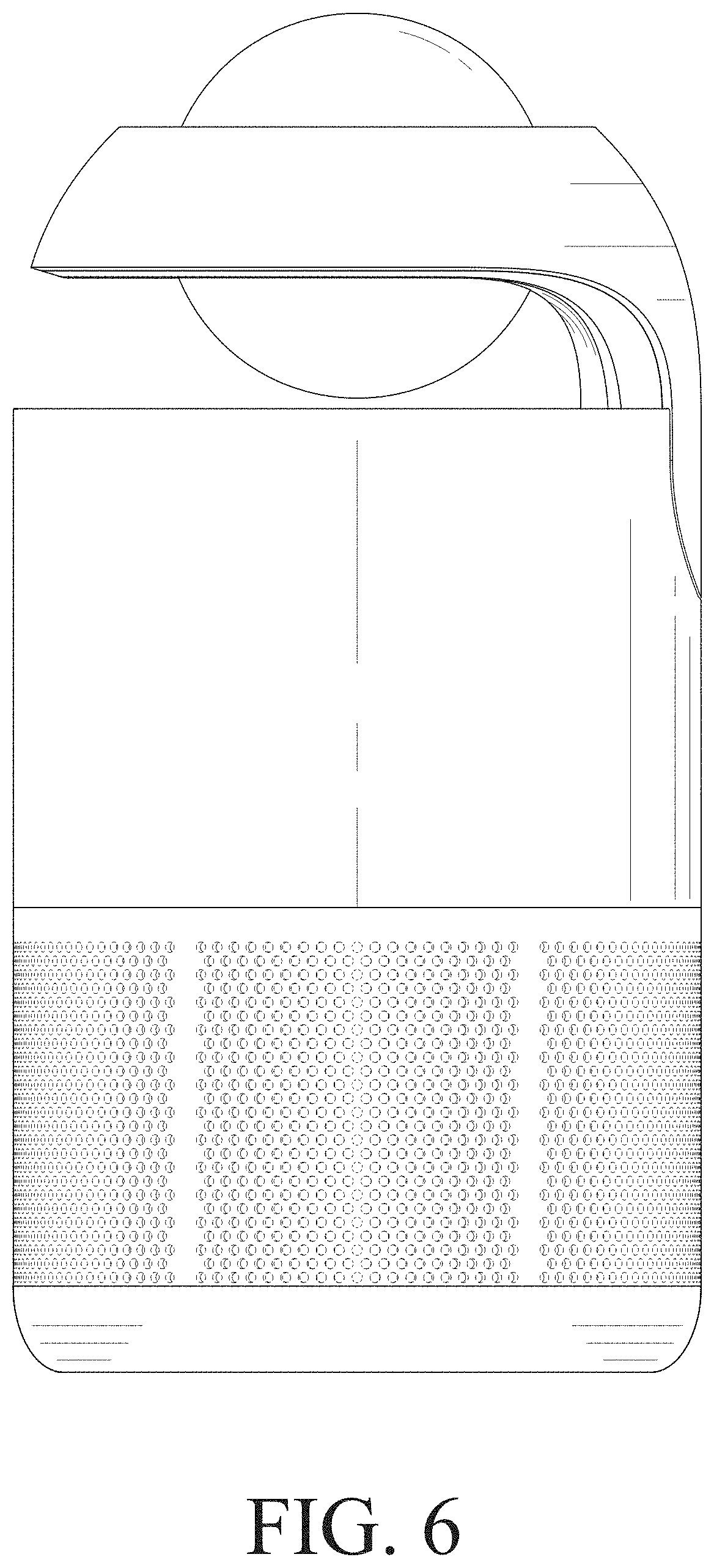

is a right-side elevational thereof;

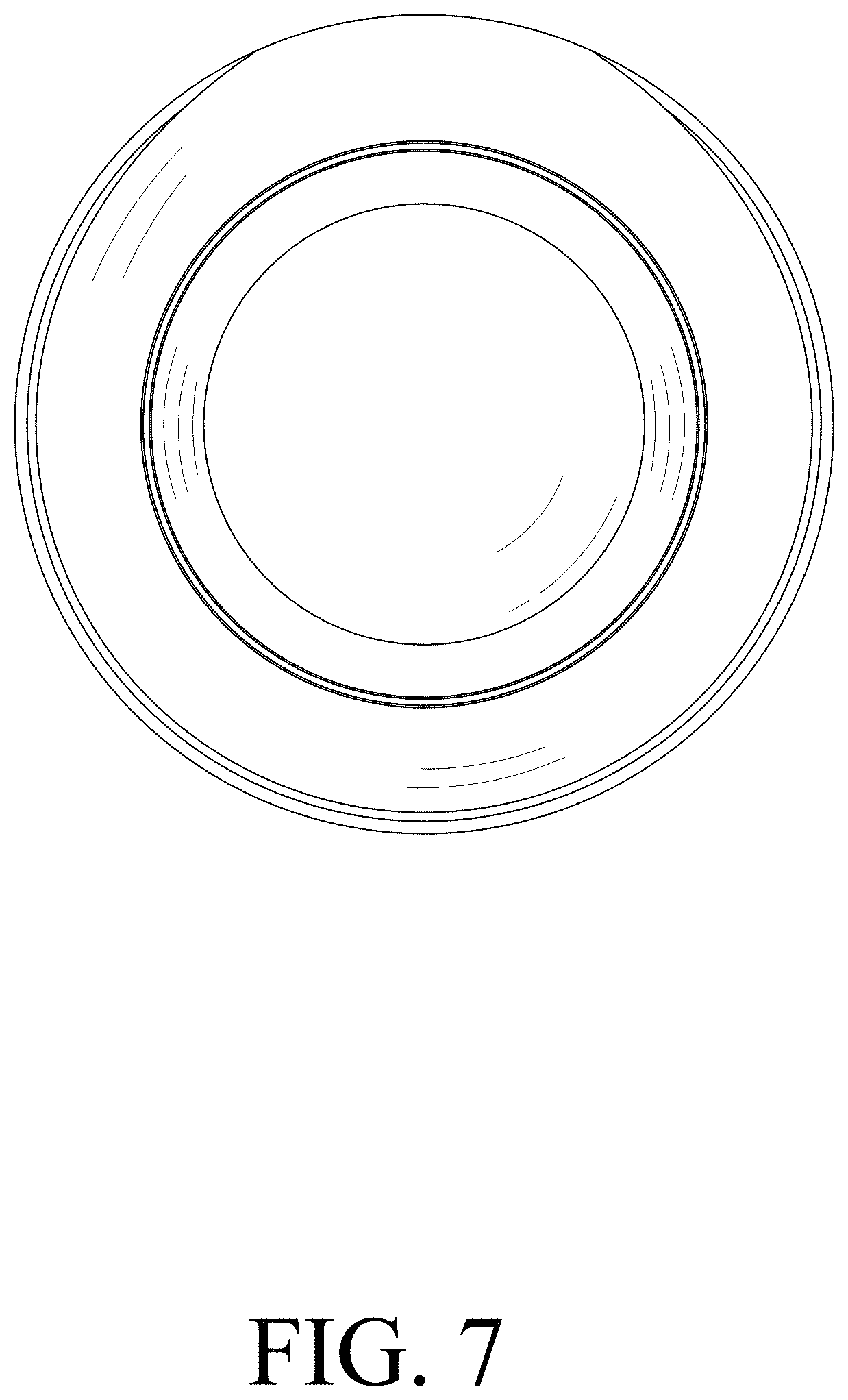

is a top plan view thereof; and,

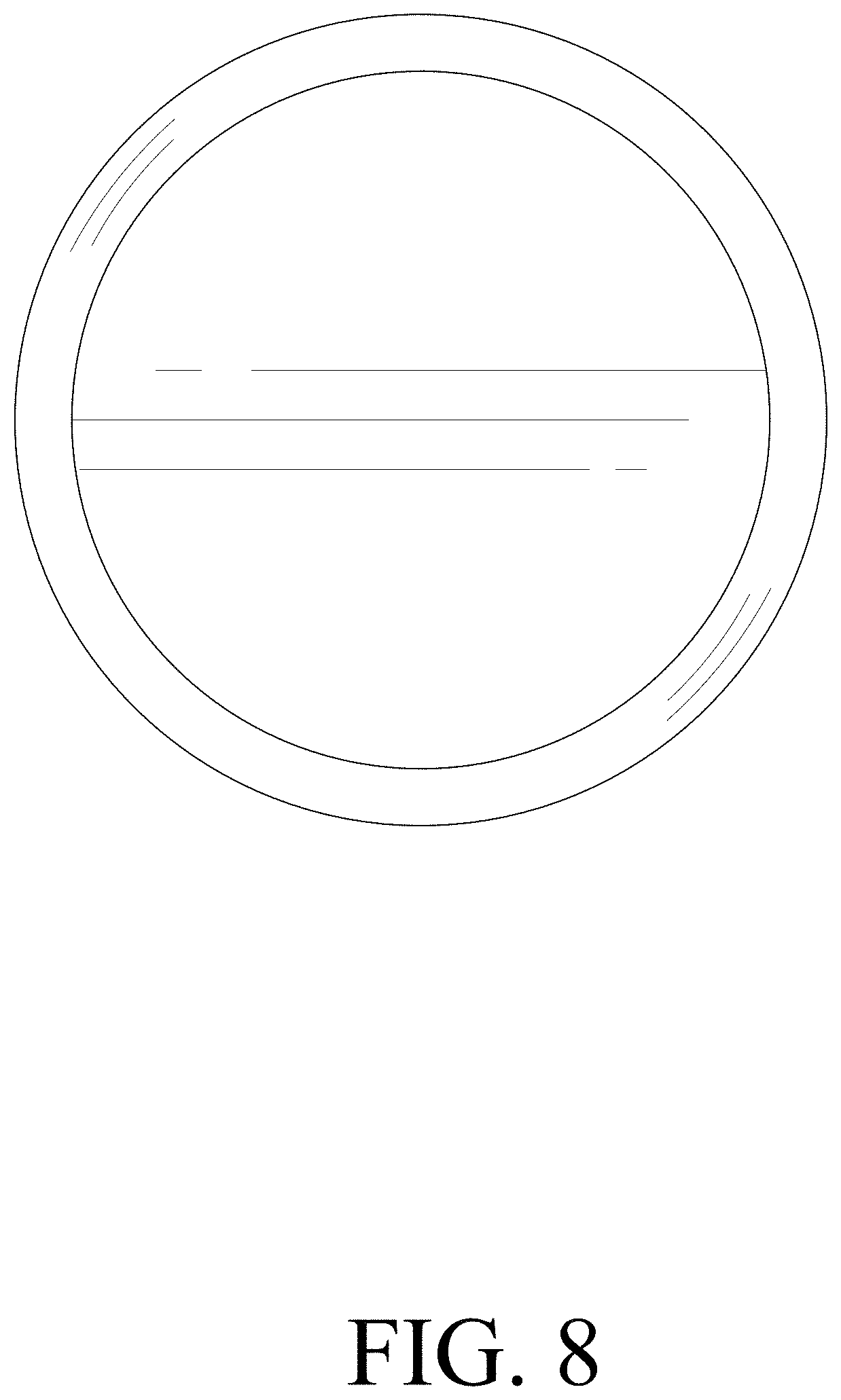

is a bottom plan view thereof.

The broken lines illustrate portions of the air purifier that form no part of the claimed design.
