Combined Miniature Basketball Backboard and Hoop
USD0999854No. D 999,854designGranted 9/26/2023
Claims (1)
Claim 1 (Independent)
The ornamental design for a combined miniature basketball backboard and hoop, as shown and described.
Full Description
Show full text →

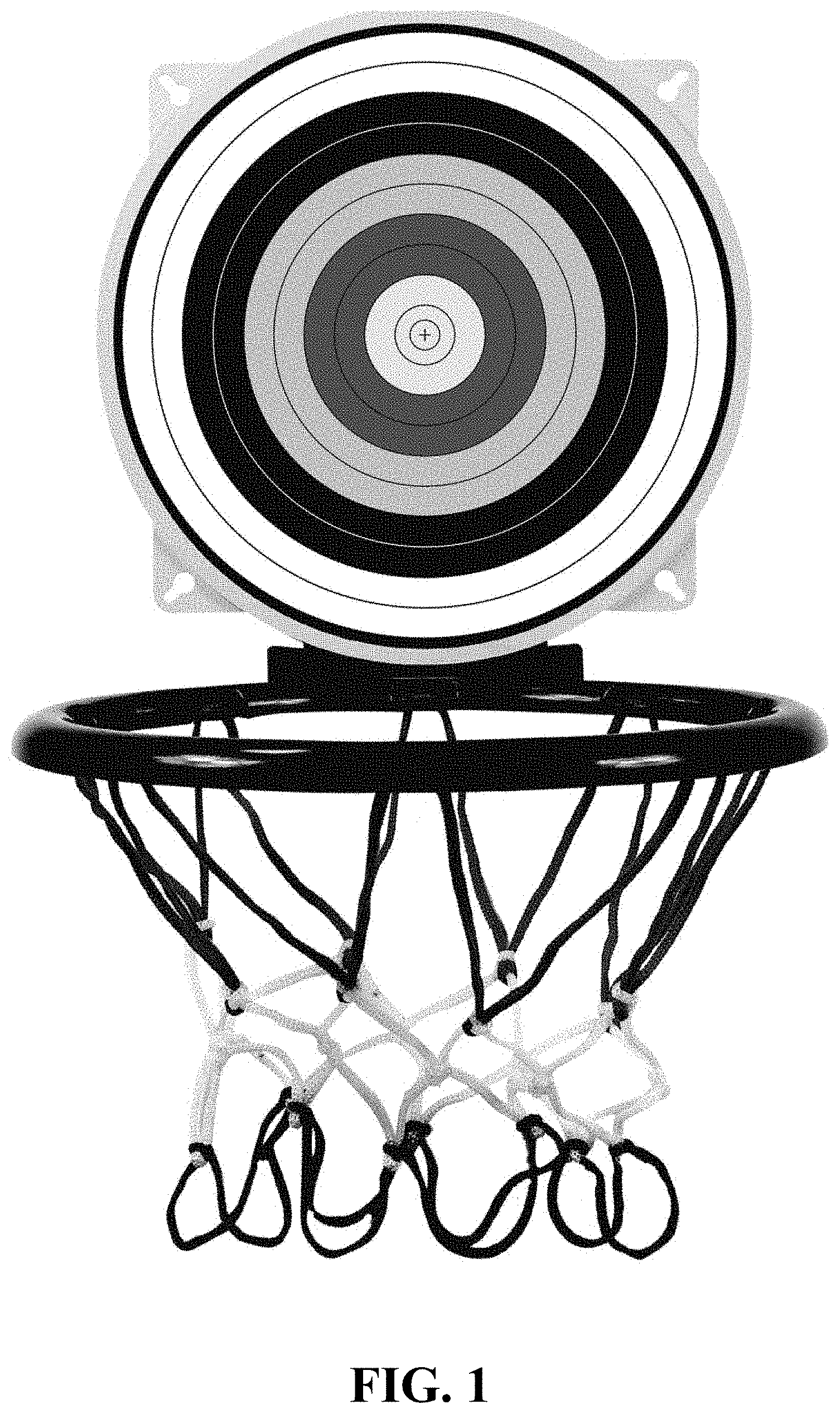

shows a first embodiment of a combined miniature basketball backboard and hoop, showing my new design, wherein a shooting target is attached on the basketball backboard and a net is coupled with the hoop; and,

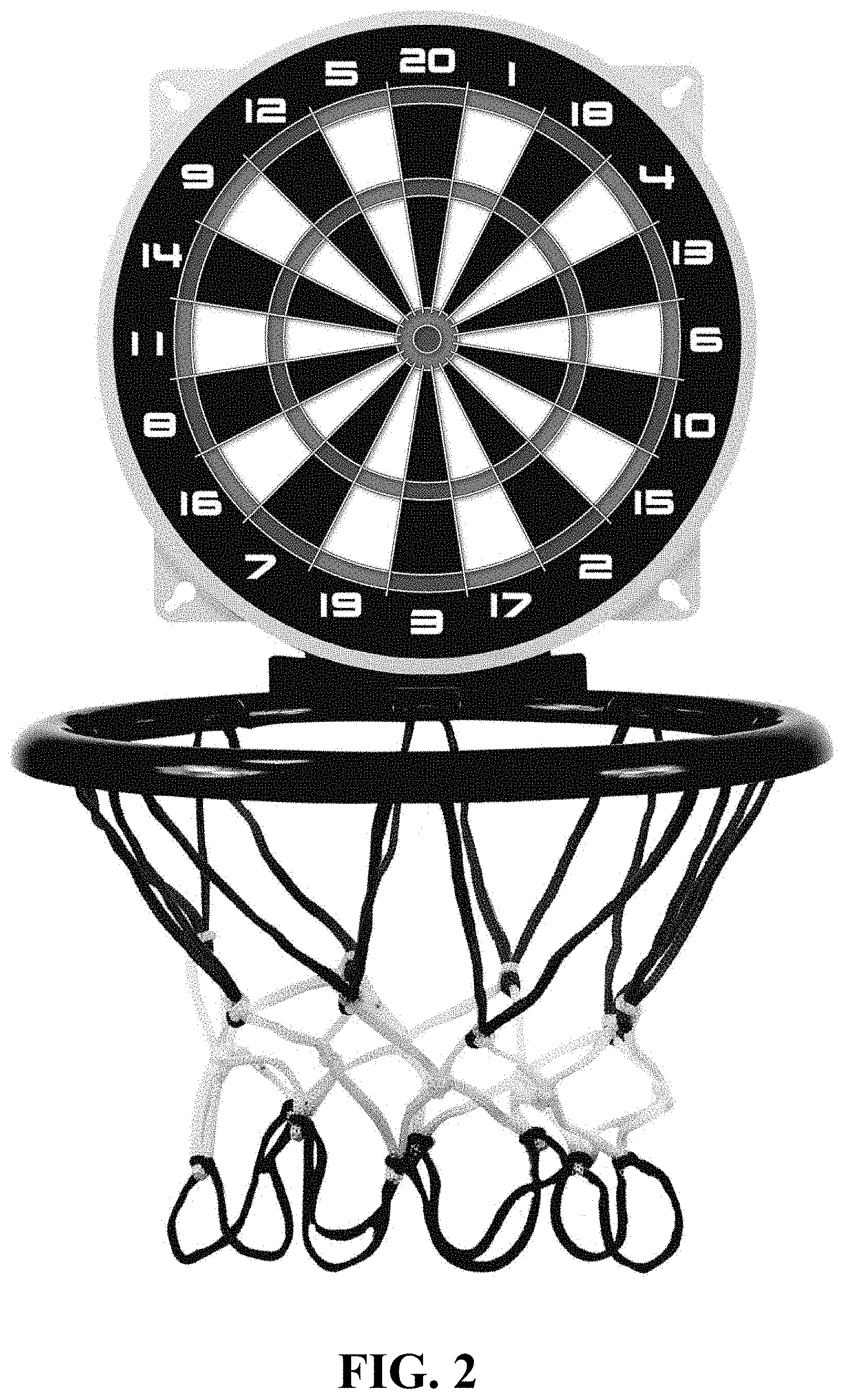

shows a second embodiment of a combined miniature basketball backboard and hoop, showing my new design, wherein a dart target is attached on the basketball backboard and a net is coupled with the hoop.
Figures (2)
Citations
This patent cites (18)
- US2192430
- US4290601
- USD261667
- US4828270
- USD308432
- US5558337
- USD387388
- US5827136
- US5967520
- USD431620
- US6338686
- USD695859
- US9592430
- USD874588
- US20040250806
- US20130165276
- US20160051874
- US3020150017280
