Door Handle

USD0999616No. D 999,616designGranted 9/26/2023
Patent USD0999616 — Door handle — Figure 1
Fig. 1 · Door Handle

Claims (1)

Claim 1 (Independent)

The ornamental design for a door handle, as shown and described.

Full Description

Show full text →

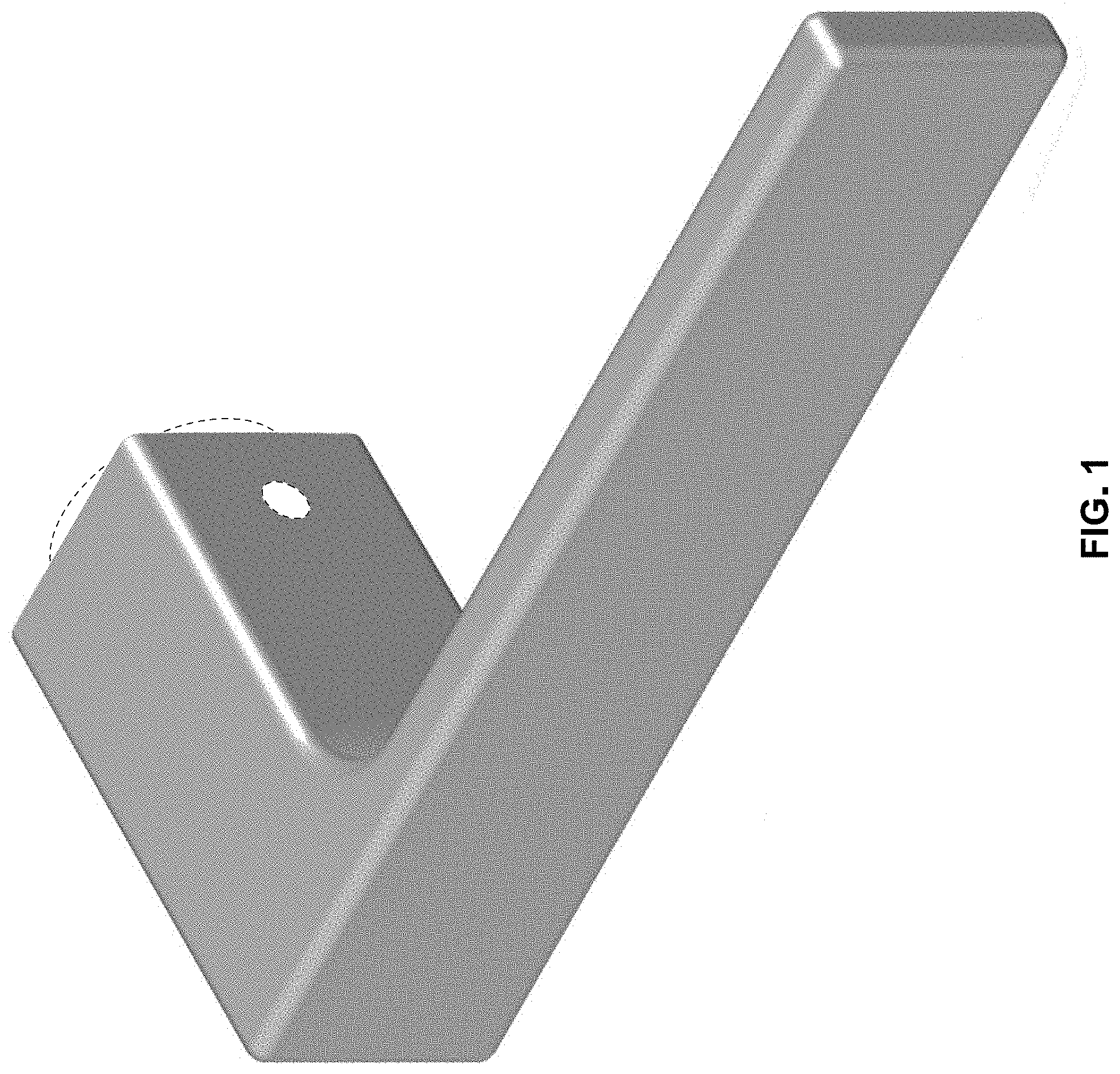

is a front perspective view of a door handle showing our new design;

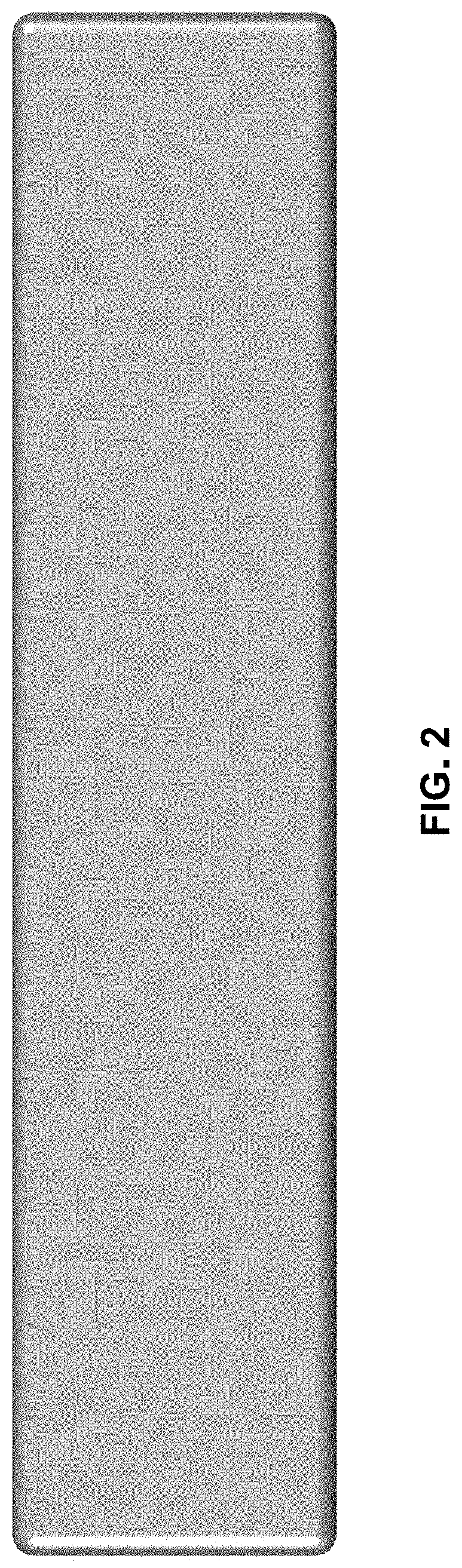

is a front view thereof;

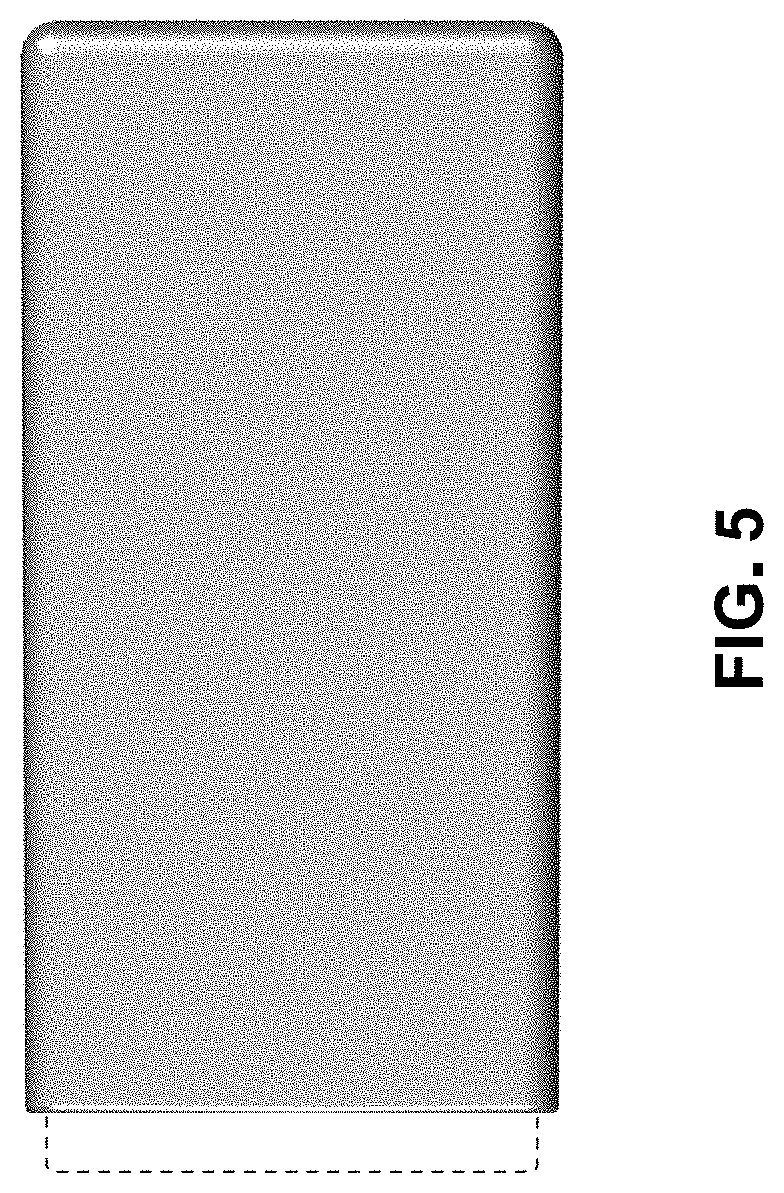

is a rear view thereof;

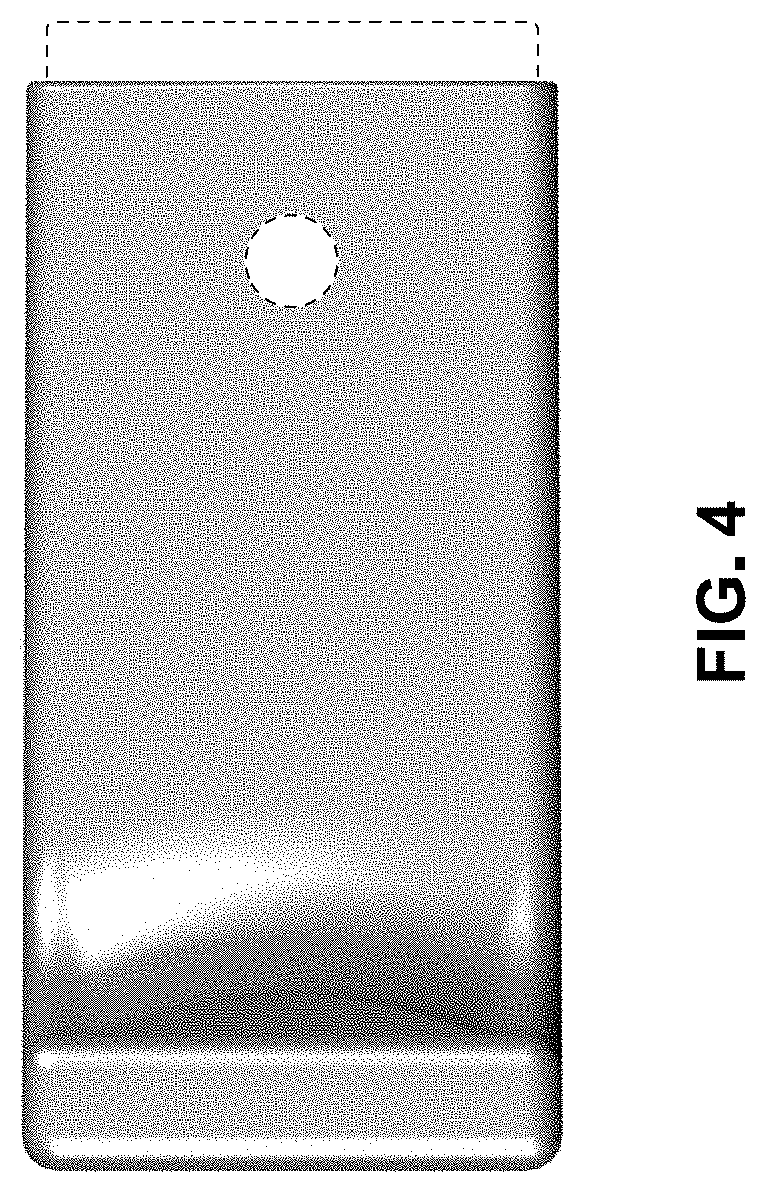

is a right side view thereof;

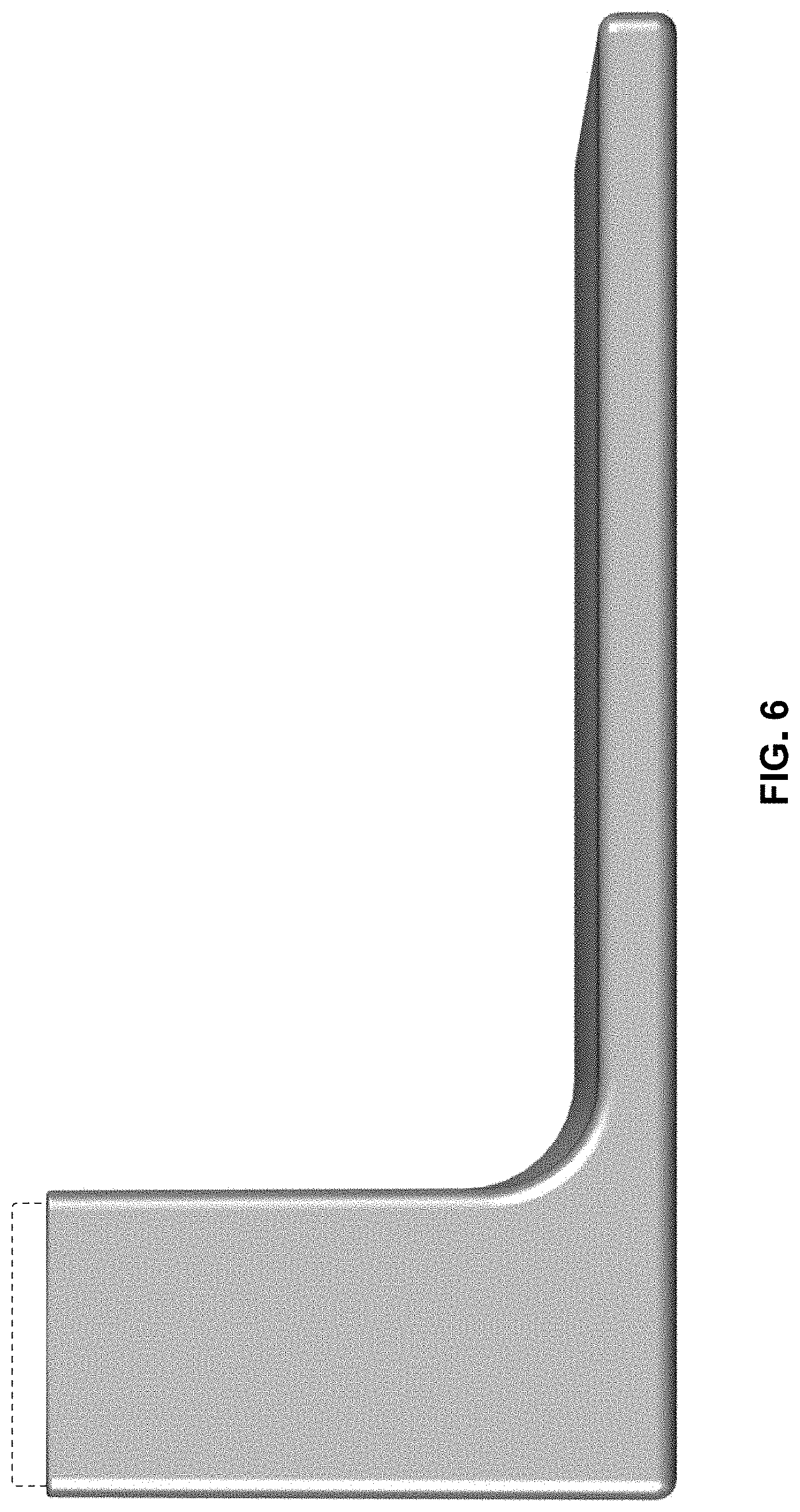

is a left side view thereof;

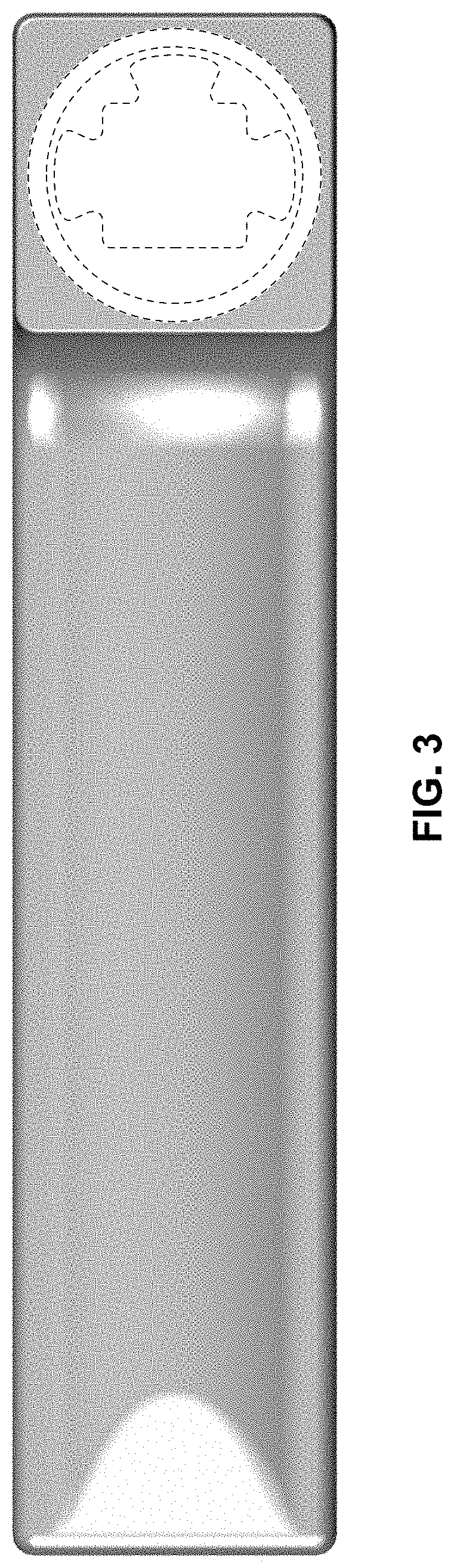

is a top view thereof; and,

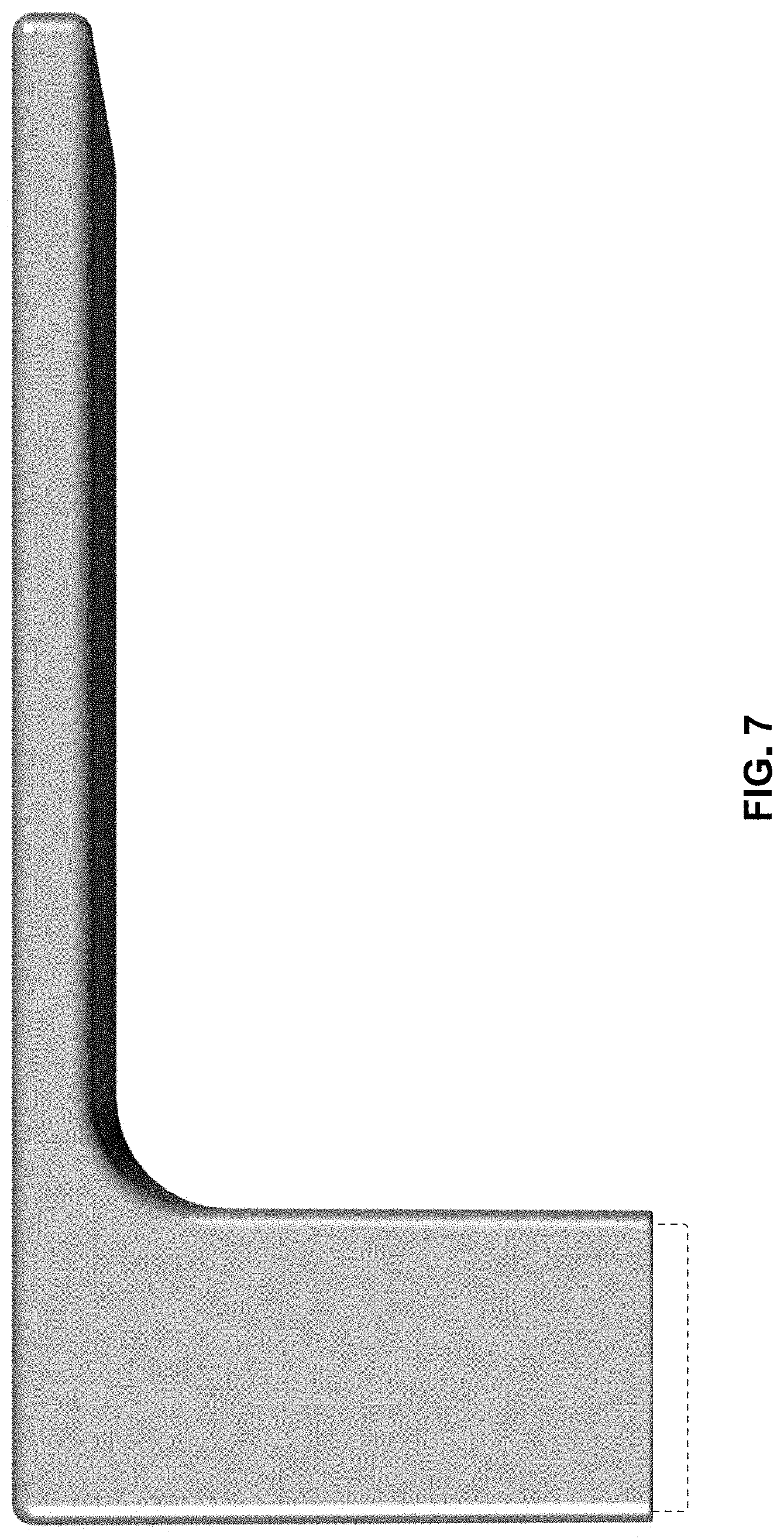

is a bottom view thereof.

The broken lines depicting the remainder of the door handle show features that form no part of the claimed design.
