Shoe

USD0999511No. D 999,511designGranted 9/26/2023
Patent USD0999511 — Shoe — Figure 1
Fig. 1 · Shoe

Claims (1)

Claim 1 (Independent)

The ornamental design for a shoe, as shown and described.

Full Description

Show full text →

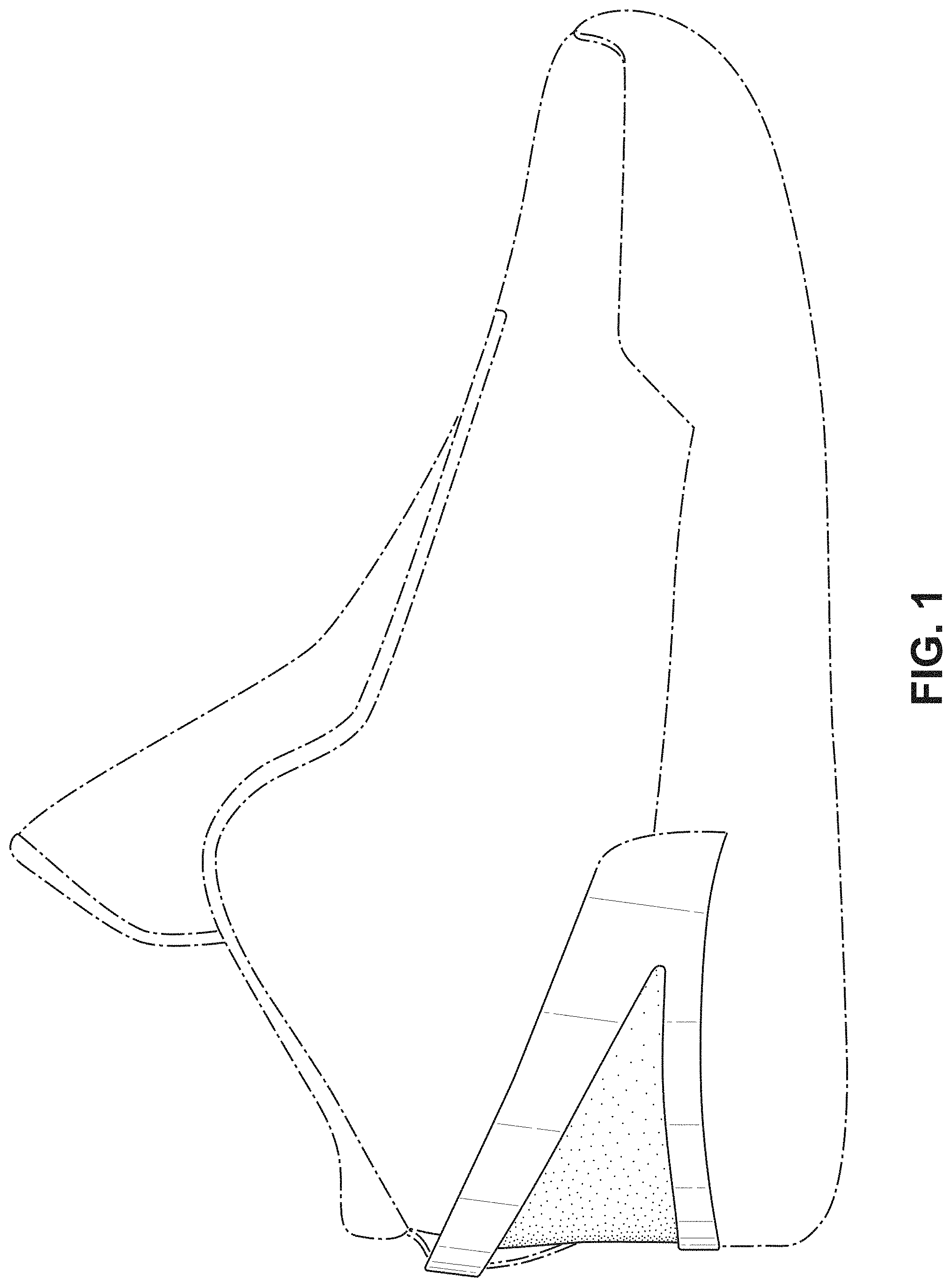

is a side view of a shoe showing our new design;

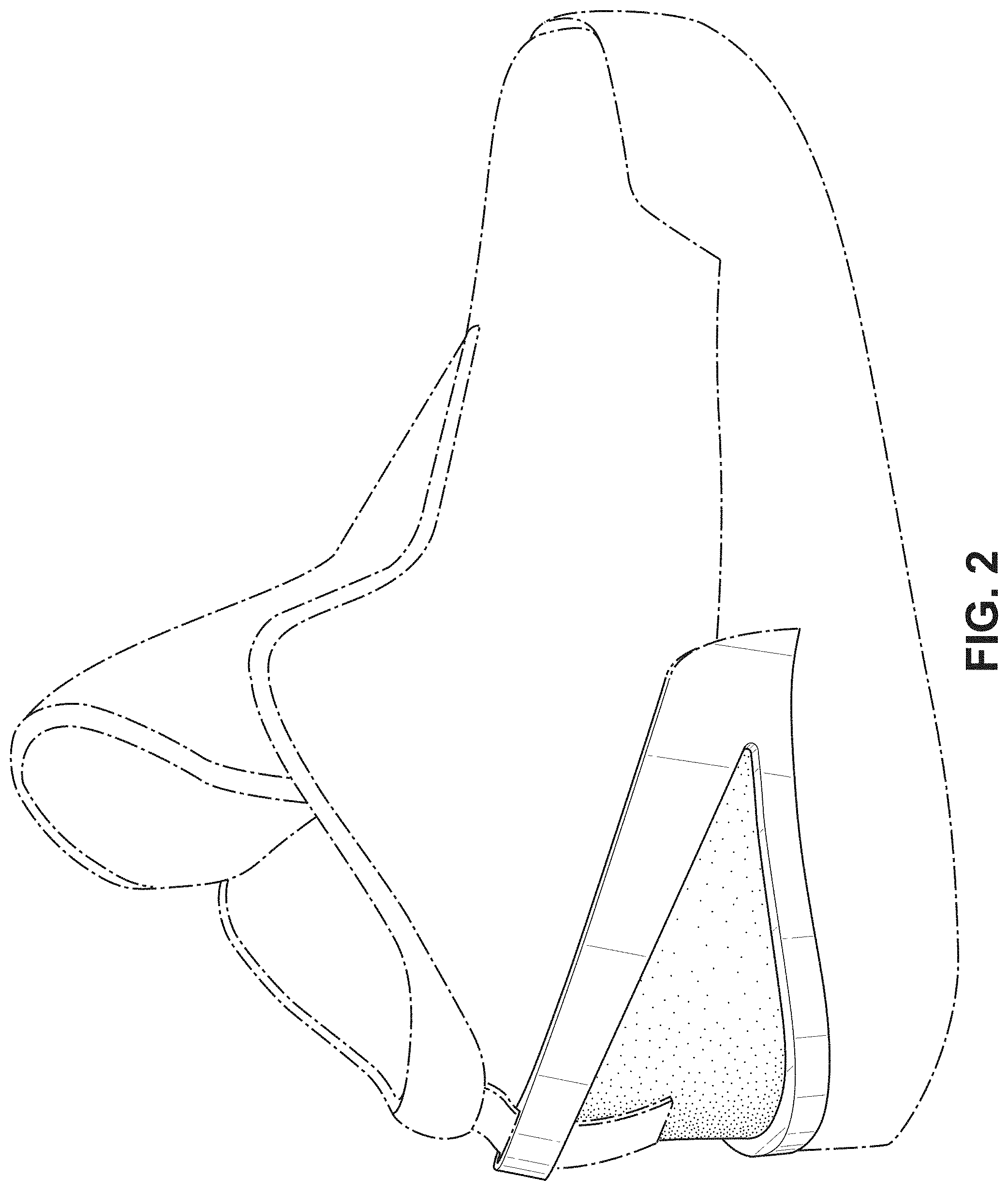

is a rear perspective view thereof;

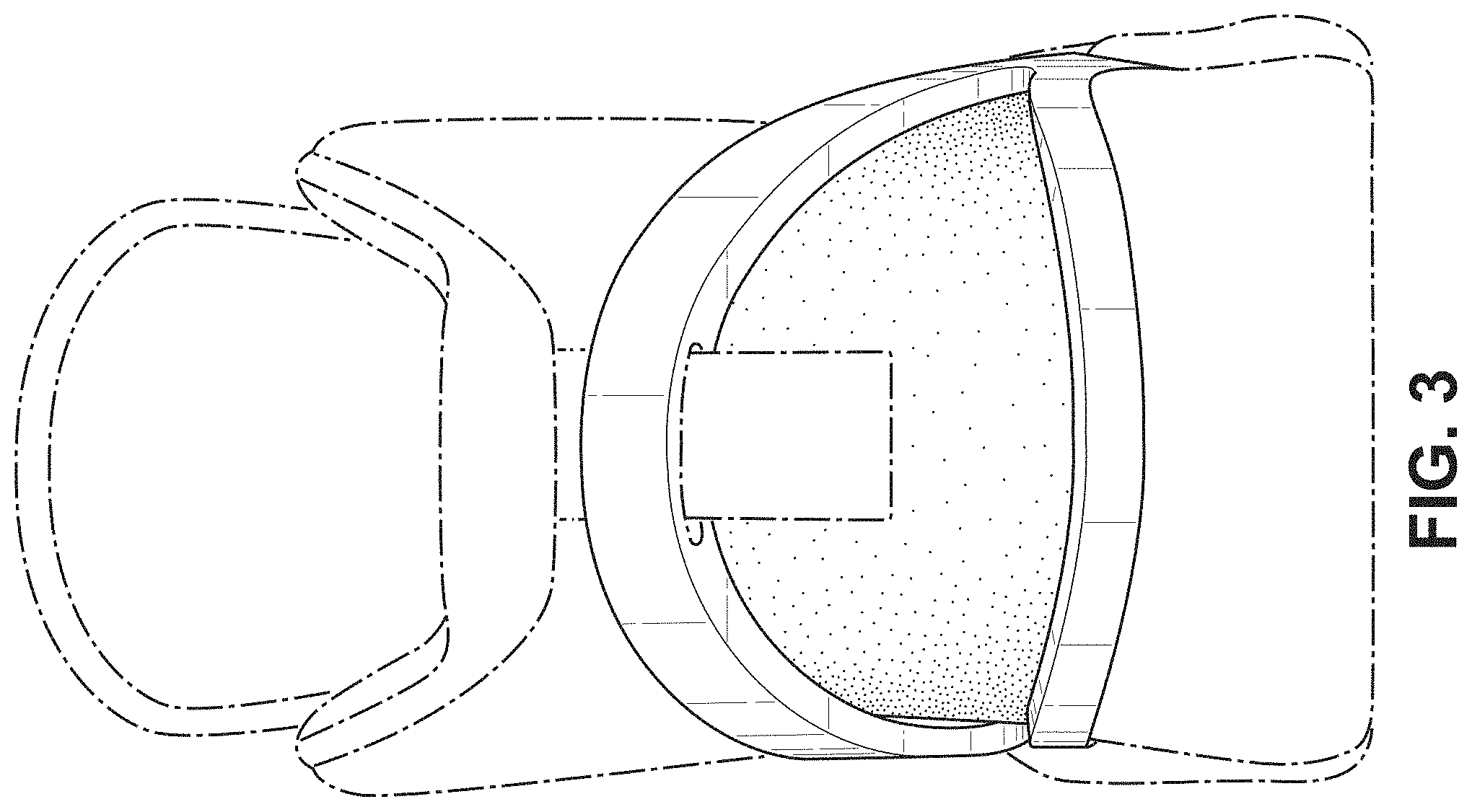

is a rear view thereof;

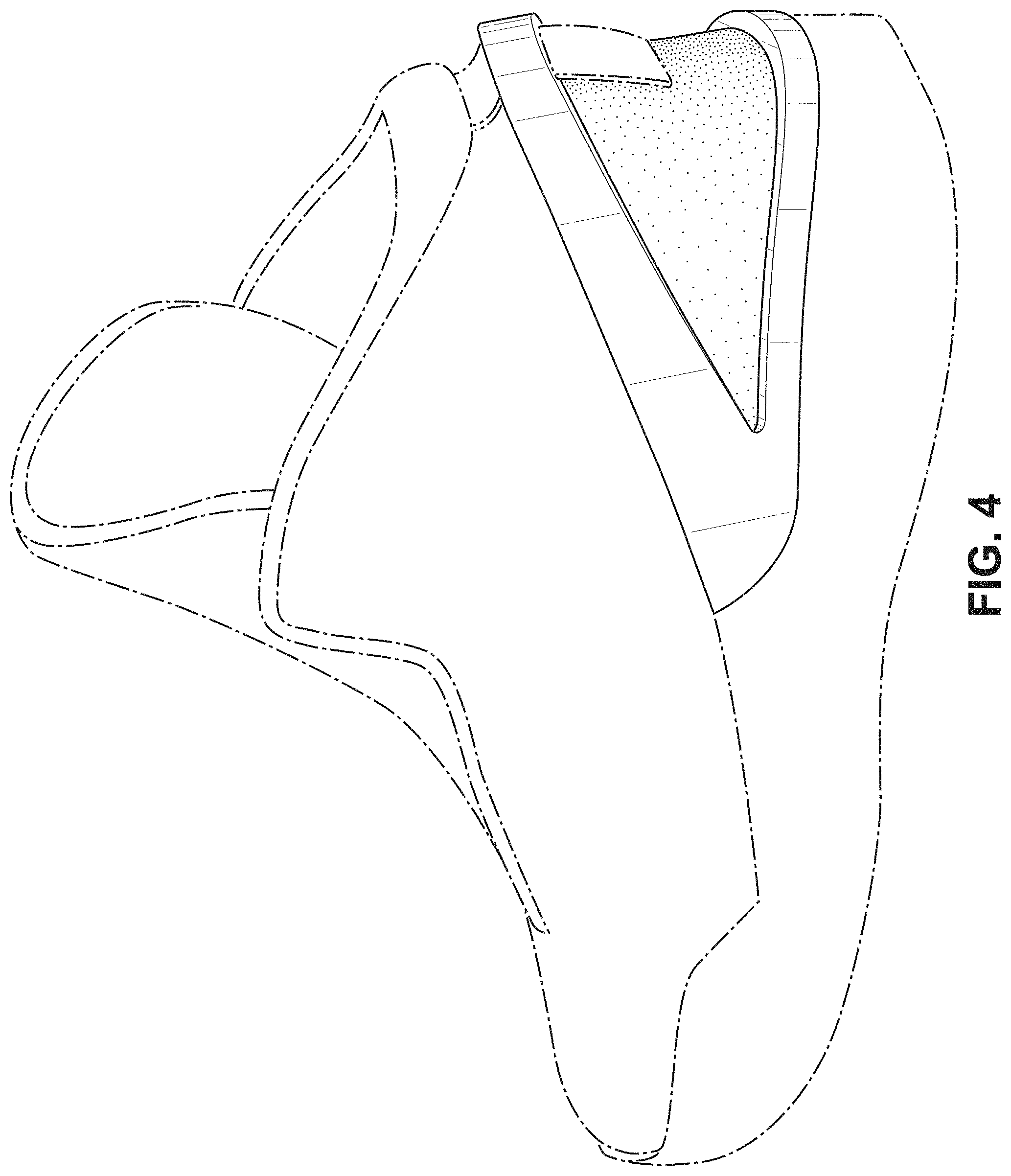

is an opposite side rear perspective view thereof; and,

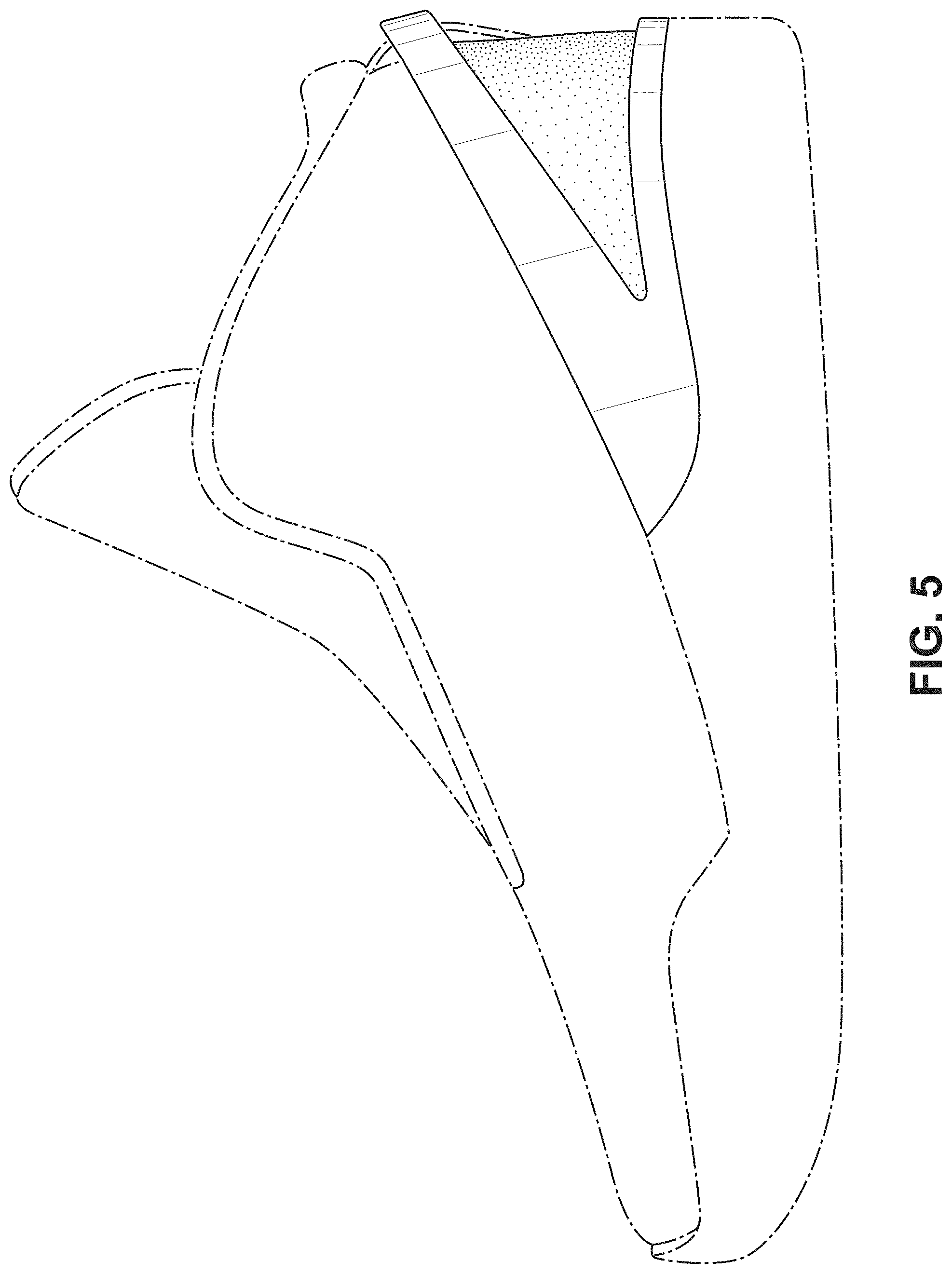

is an opposite side view thereof.

The broken lines immediately adjacent to the shaded area define the bounds of the claimed design and form no part thereof. The broken line showing of the rear opening and the strap element extending therethrough forms no part of the claimed design. The broken lines depicting the remainder of the shoe form no part of the claimed design.

Figures (5)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
